Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 603

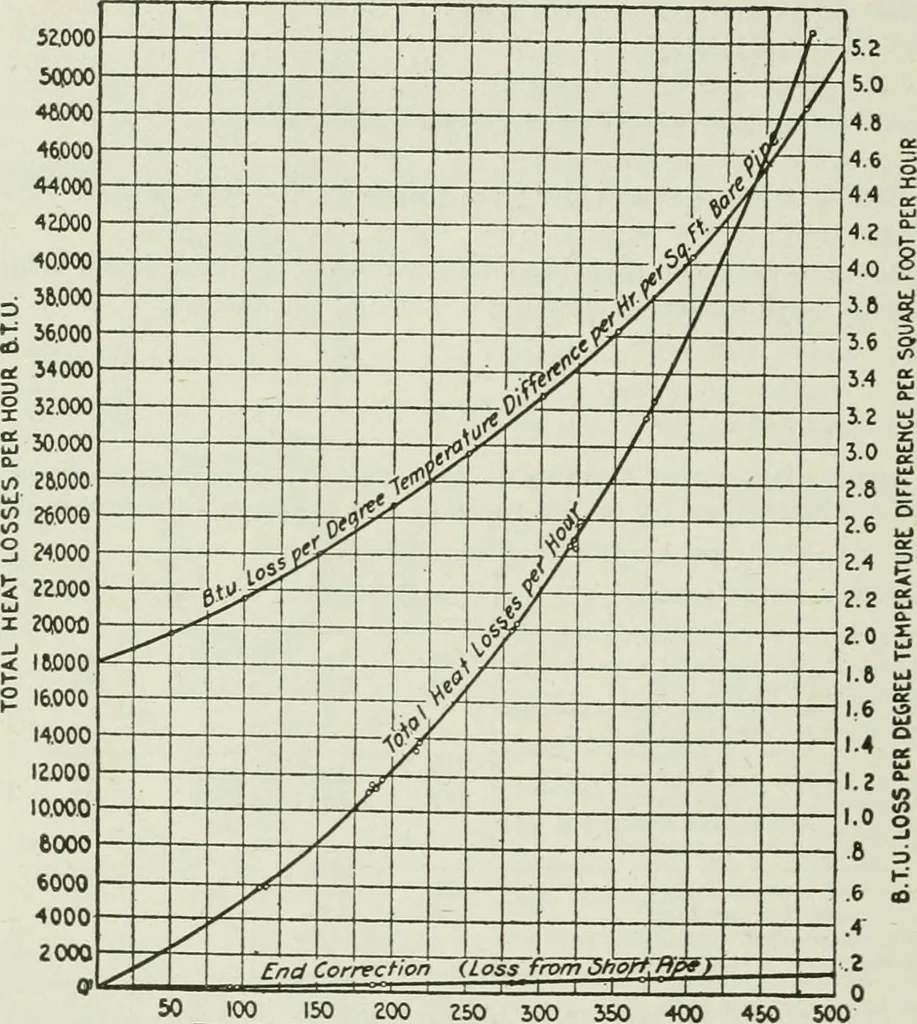

. Theordinate of any point is the total heat loss per hour, which is the equivalent of the electrical energyrequired to maintain the pipe at the given temperature, and the abscissa is the difference between pipetemperature and room temperature. On the same sheet is plotted a curve of heat losses… … 50 100 ISO 200 250 500 350 -400TEMPERATURE DIFFERENCC-DEGREES FAHRENHEIT(PIPE TEMP.-ROOM TEMP.> Pig. 40. Test of Bare Pipe.(L. B. McMillan.) heat loss per hour from the 15-ft. length of bare pipe. This net loss divided by the temperature differ-ence and the area of test section (22.03 sq. ft.)…
Building · Heating · Ventilation
