Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 89

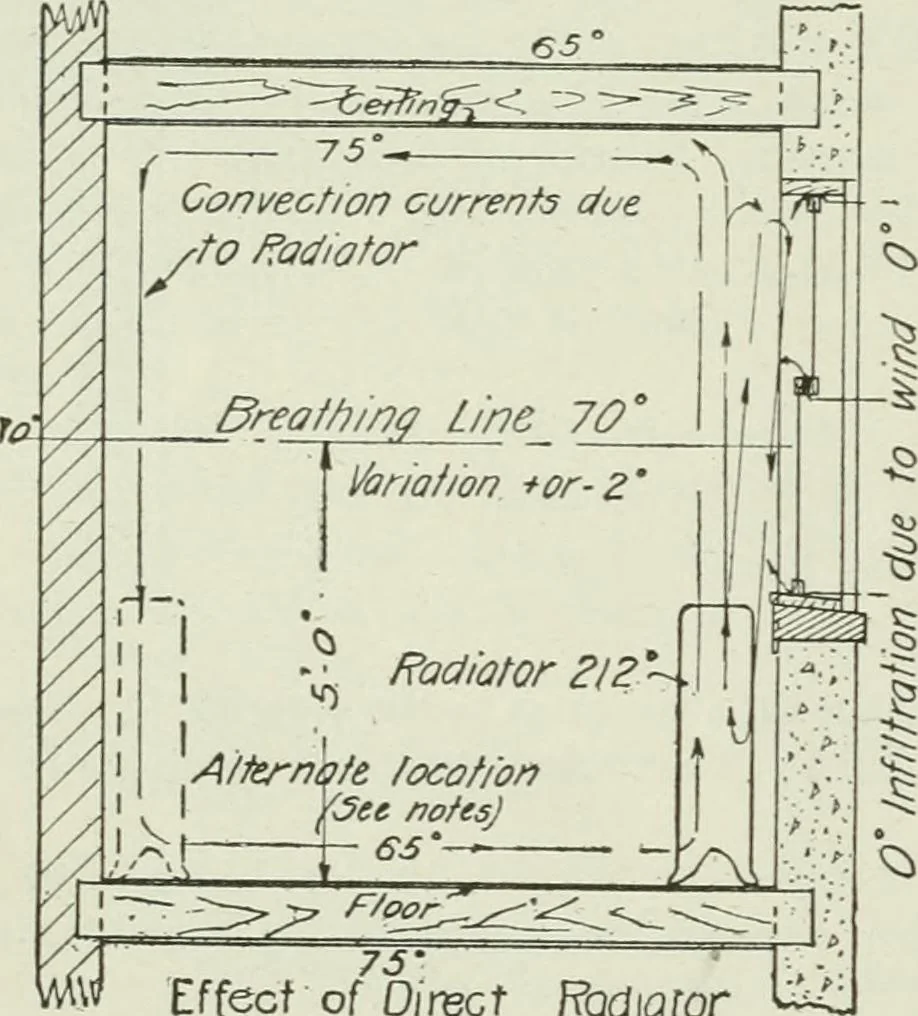

ecomes (1.75 — 0.002 X 50 X 1.75) = 1.58, and each sq. ft. of this radiationwould give off, 1.58 X 100 = 158 B.t.u. per hr. The effect of a direct radiator on the temperature and the air movement within a room dependsupon its location. If placed under a window (Fig. 17) there w^ll be a general room… … w Effect of Direef WQd\QiorOn /4ir Circu/qfion in Room Fig. 17 HEAT TRANSMISSION OF DIRECT RADIATORS 79 dow surface is in direct contact with the hottest air, and in close proximity to the hot surface ofthe radiator, resulting in a maximum heat transmission or loss through the wall, and…
