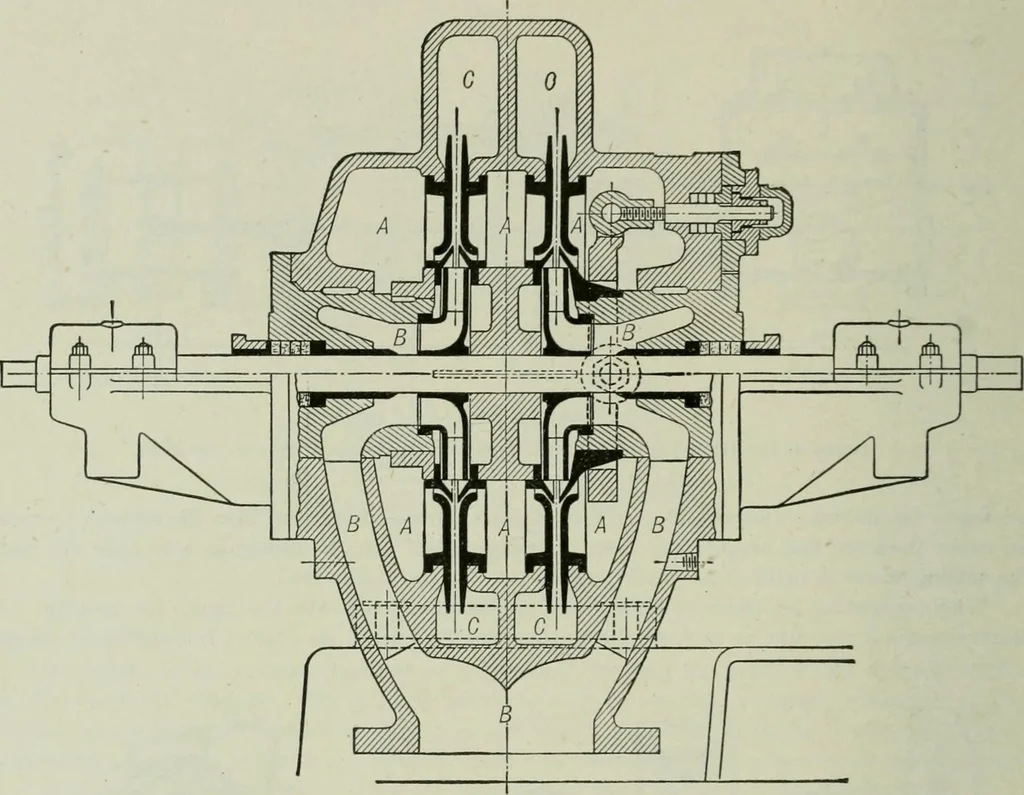

r pump, owing to the 422 POWER PLANTS AND REFRIGERATION absence of valves, may be driven at high speed, and is supplanting the reciprocating type to aconsiderable extent for high-vacuum work in connection with all forms of condensers. The Leblanc Air Pump. By referring to Fig. 36, which shows an… … Fig. 37. Thyssen Entr.mnment Vacuum Pump.AA, Air Suction Cliaraber.s; BB, Water Suction Passages; CC, Water and Air Discharge Passages. forms the annular nozzle of a steam ejector, so that on opening the valve in the steam line avacuum is created in the body of the air pump. The chamber E being…
