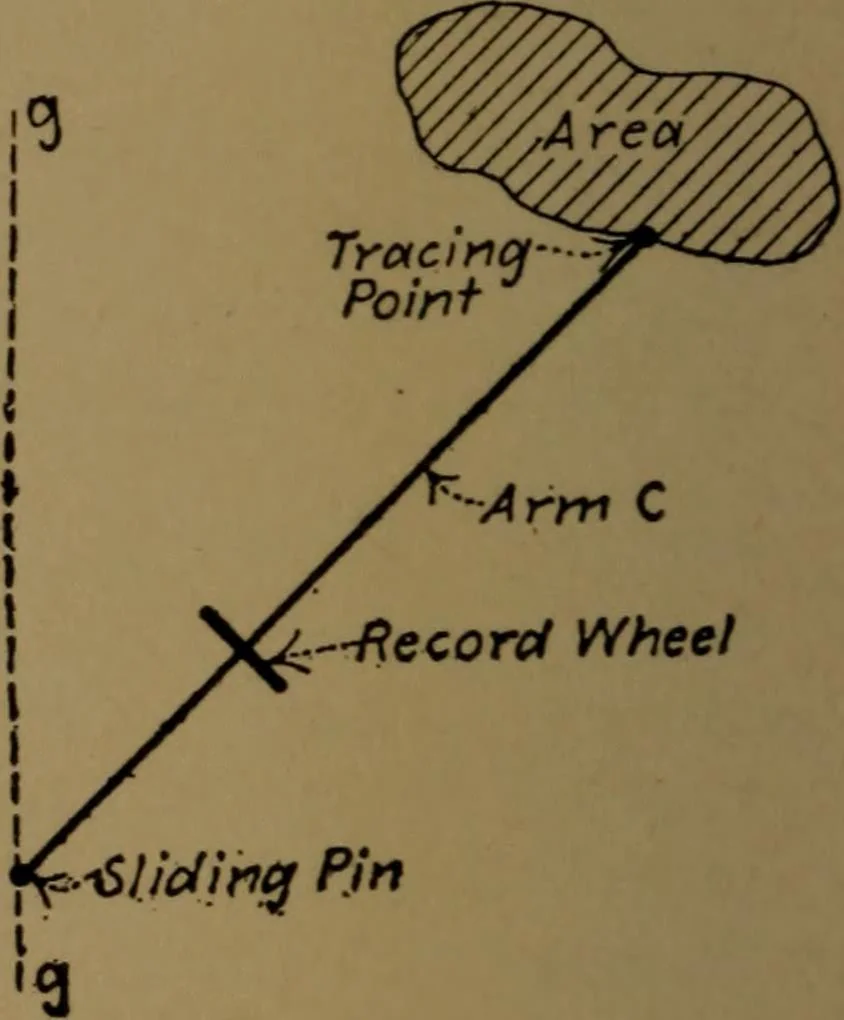

eel is mounted on the arm asshown. An examination of Figs. 52 and 47 will show that theCoffin planimeter is the same in principle as the polar; themechanical difference being that the arm a of the former is infinitelylong, so that the pivot swings in a right line instead of the arcof a circle. The… … ■Record Wheel ^■-61/ofiriCf Pin Fig. 52.Coffin Planimeter. For this purpose the indicator diagram is arranged as shown by Fig. 53, with its left-hand extremity in the line of the guide, and its base perpendicular to the line of the guide. The tracing point of the planimeter is then placed at the…
