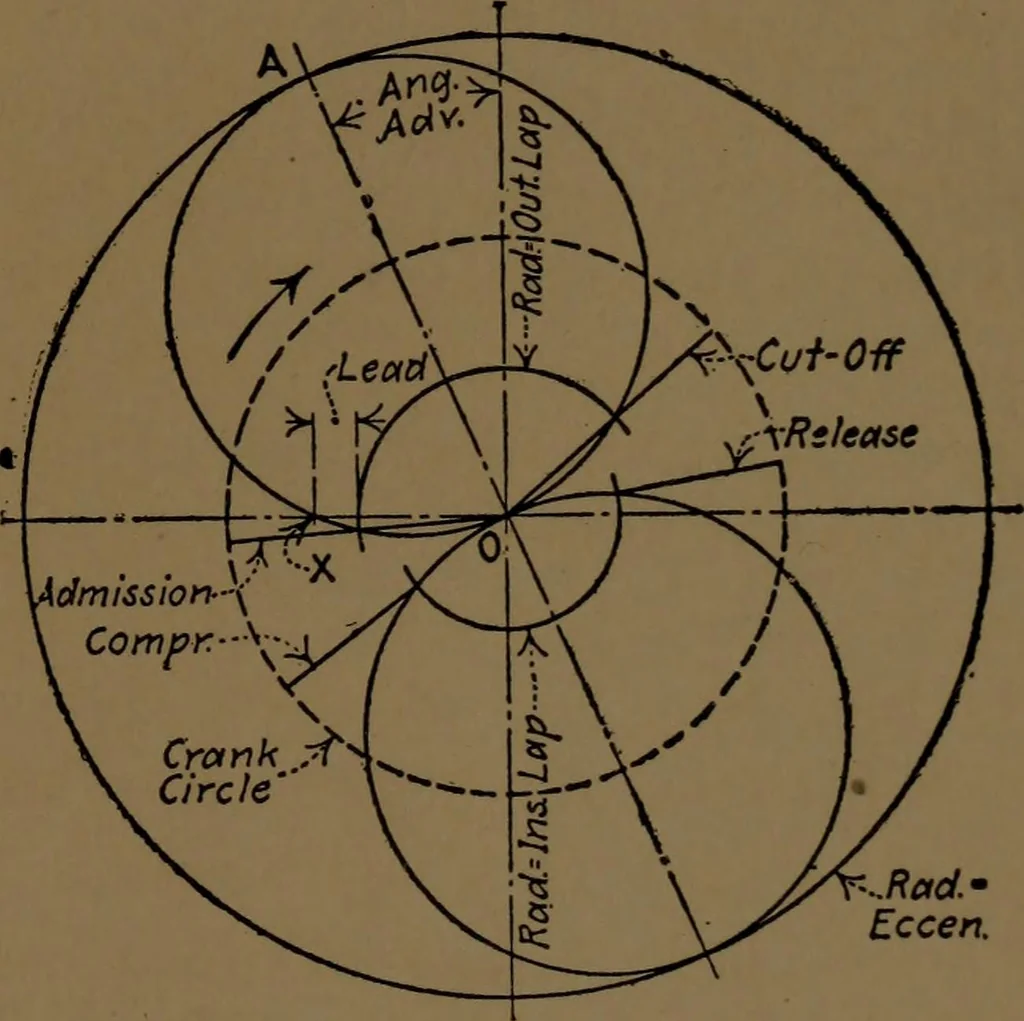

mensions being taken from the end considered.The sum of the outside laps should also be found as describedunder (c), and the sum of the inside laps, found similarly, bysubtracting the distance between the inside edges of the valvefaces from the distance between the inside edges of the ports. The… … ..Rad-Eccen. lap circle is drawn with its center at such a point, x, on the eccen-tric circle as to make the lap circle tangent to the lead line. Theangular advance line is then drawn in, which locates the centersox the other lap circles.Having described these theevents of the stroke, in…
