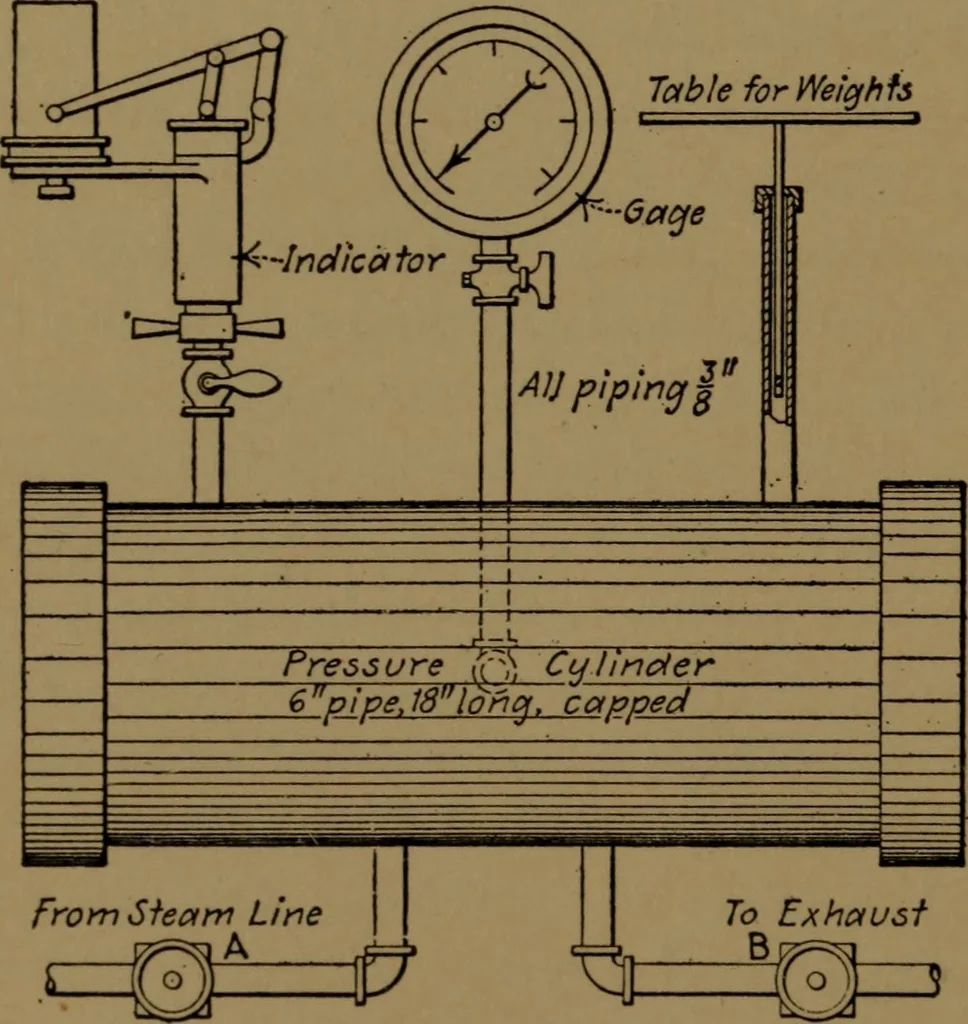

ng. The table is revolved by hand to reducefriction at the plunger. 54 THE ENGINE INDICATOR 10 The heights of the lines from the atmosphere line are thenmeasured to ilo in;, and recorded on the diagram with corre-sponding pressures as in Fig. 34. These data are then plottedand results obtained as… … Fig. 33.—Indicator Spring TestingApparatus. W8. _m_5(j 1.32 l36* 40 l02n -1031-30 0.64* Zd 0.32r 0.34* 10 Atmosphere-^ o < Fig. 34.—CalibrationRecords. pressure in pounds per square inch, and E, the height of theindicator pencil in inches. (d) Correction of Indicator Diagrams. Various methods,…
