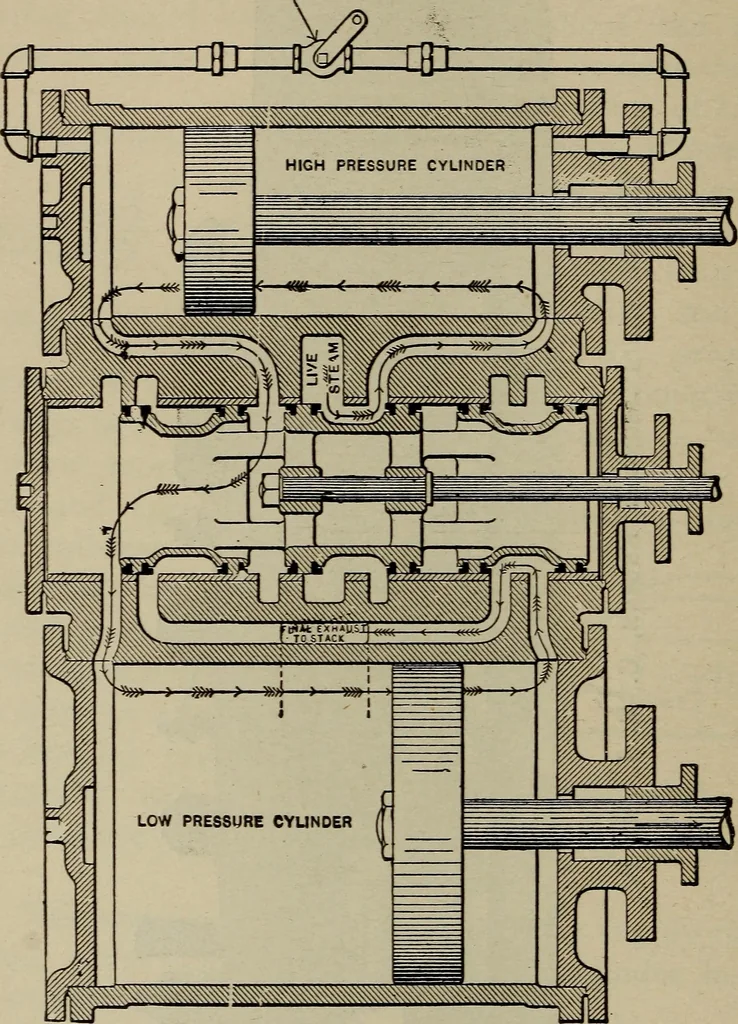

?a LOCOMOTIVE ENGINEERING li»e with each other, the low-pressure outside, and thehigh-pressure inside the frames. The slide valves are of the piston type, placed above STARTING VALVE … steam distribution in balanced compound cylinders Figure 135 and between the two cylinders which they are arrangedto control. A separate set of guides and connectionsis required for each cylinder. COMPOUND LOCOMOTIVES 30: H J2JO M ? w • > 9 * o d Q O od tt
