Mechanical laboratory methods; a testing of instruments and machines in the mechanical engineering laboratory and in practice (1918)
Smallwood, Julian Chase · New York, D. Van Nostrand company · leaf 366

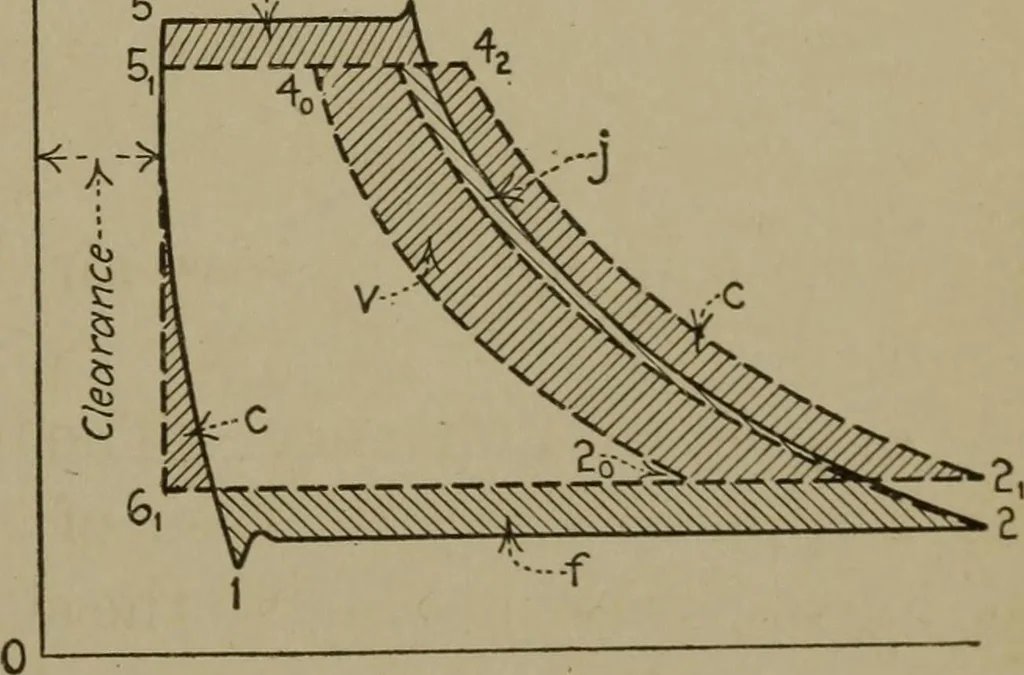

atordiagram are not precise, an idea may be formed of them by ananalysis of a representativediagram from a test. Fig. ^ r f 4109 is such a one. Through2i, vertically over 2, ahorizontal should be drawnto represent atmosphericpressure. Through 2i anisothermal is drawn referredto a volume axis… … Fig. 109.—Air Compressor Losses. 846 TESTING OF AIR MACHINERY 67 42 is laid off to represent the pressure in the delivery main.The ideal diagram is then 6i-2i-42-5i. The loss due to fluid friction at the valves and ports isrepresented by areas /, /. The los-s due to insufficient cooling by the…
Mechanical engineering laboratories
