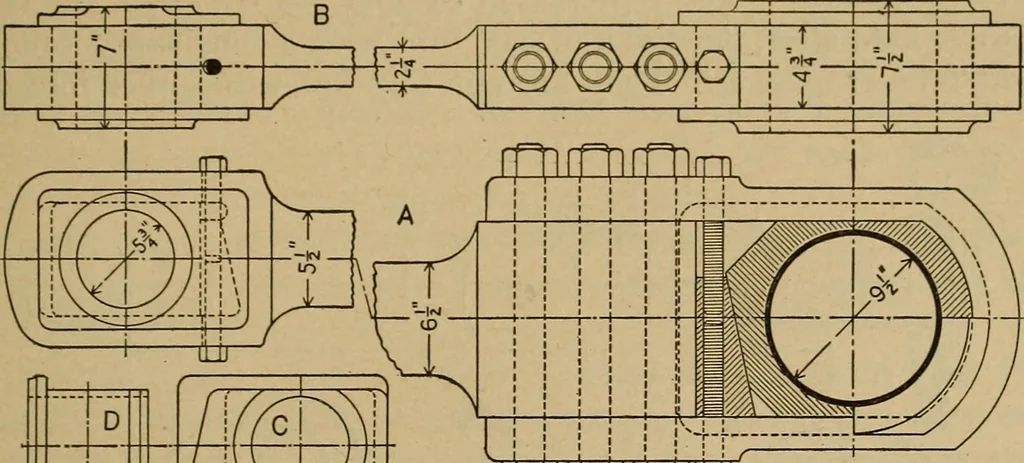

The boxes or brasses which form the bearing properniust be enclosed in a frame or casing of suitable form and strength,and provision must be made for setting them to a proper fit upon the 36 m CONSTRUCTION OF THE ENGINE. 355 pin and for taking up wear. Four types of rod end may be here… … Bra lUlliiliLUi^ FiQ. 213. — Rod with Bolted Strap at Crank-pin end, for 22 and 42 by 27 in. cross-compound engine at 175 r.p.m. Scale 1 to 15. strap is a very good type of end construction, while the essentially equiv-alent jaw end in Fig. 214 is based on German practice. The marine
