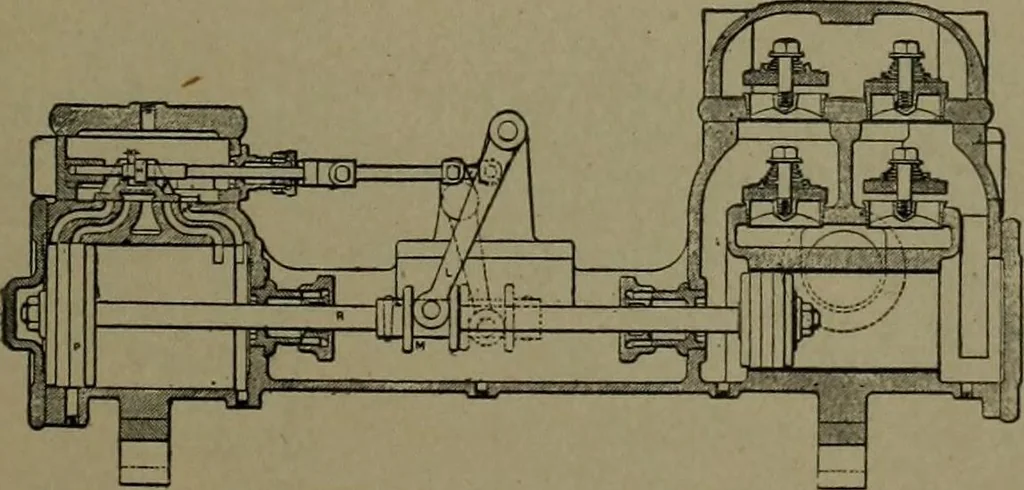

504. COMPOUND BEAM PUMP-ING ENGINE for water works. Thehigh- and low-pressure cylinders are in-clined, to make room for direct connec-tion of the pump and crank rods. … 505. DEAN STEAMPUMP.—The valve gearof the Duplex pump. Alever and rock shaft, movedby a spool on the connect-ing rod, operates the valveof the opposite cylinder, for alternating the strokes of the pistcns. I40 HYDRAULIC POWER AND DEVICES. r^
Mechanical movements
