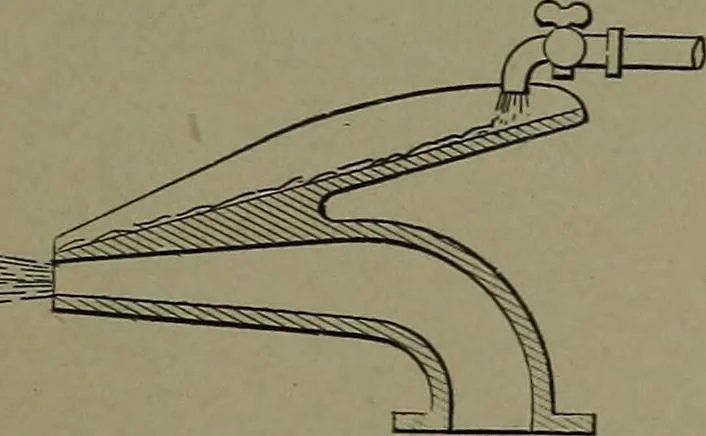

An illustration from Mechanical movements, powers and devices, 1911, leaf 172 — TANK, Miller model. In this form thesiphon is inverted, holding the water seal tobalance the water head in the tank in theuptake of the siphon. The cap over thelong end of the siphon is to seal the air inthe siphon until the sewage pressure isequal to the water-balanced leg. 604. AUTOMATIC FLUSH… … 605. ATOMIZER.—A small streamrunning down an incline is atomized atthe nozzle by a blast of air.
