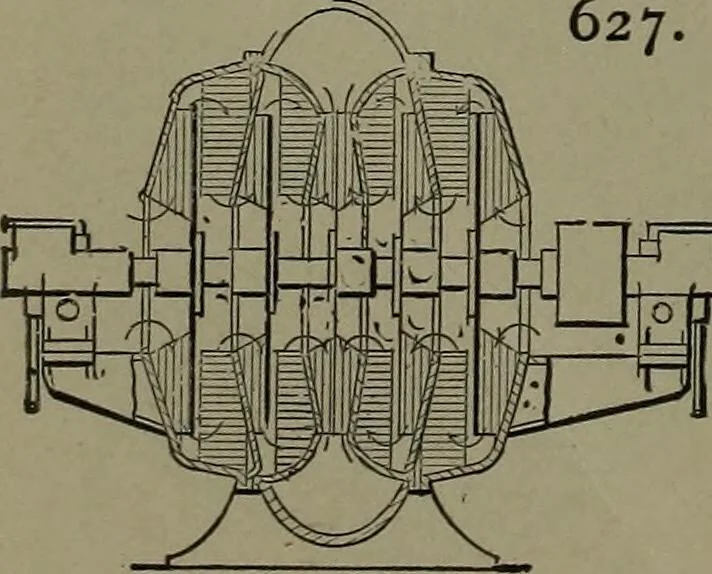

An illustration from Mechanical movements, powers and devices, 1911, leaf 179 — 626. FAN BLOWER.—An ordinary modeias used for blowing forge fires … 627. HODGES COMPOUND BLOWER.— The action is a triple effect. The air isdrawn in at each side of the blower andrTj thrown out at increasing pressure succes-sively by the fans on each side, and returnedsuccessively by the stationary partitions,with a final discharge at the central annu*lar chamber.…
