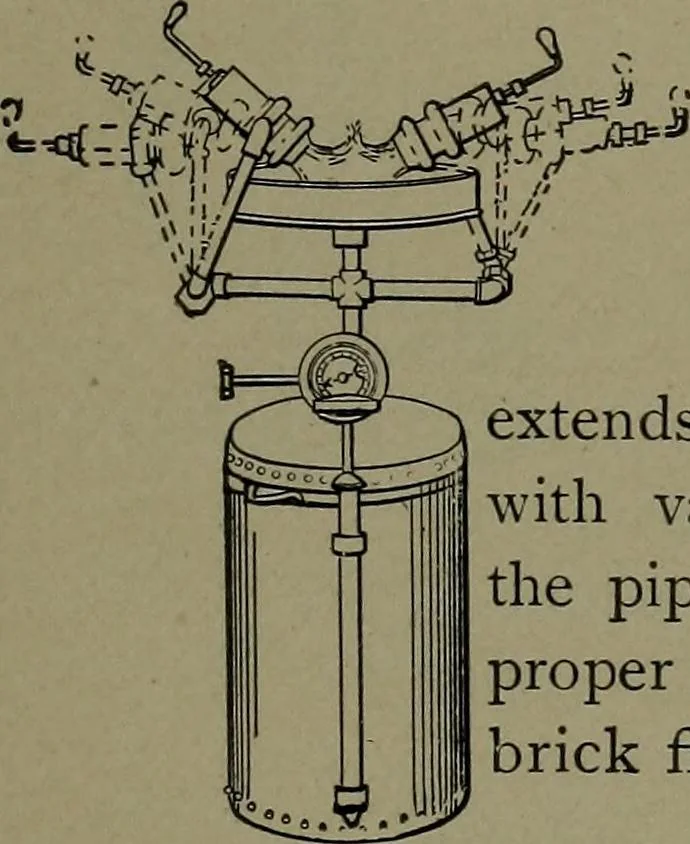

690. AIR AND GASOLINE VAPOR BRA-ZER, double flame. The pressure of vapor tothe Bunsen burners is regulated by a valve nearthe top of the tank. The valve handles hangingfrom the stems regulate each burner. … 691. AIR AND GASOLINE BRAZINGAPPARATUS.—A small attached pumpforces air into a tank holding a small quan-tity of gasoline. A gauge shows the airpressure. From the top of the tank a pipeextends to two oppositely placed Bunsen burnerswith valves for regulating the flame. Swivels inthe pipe allow the…
