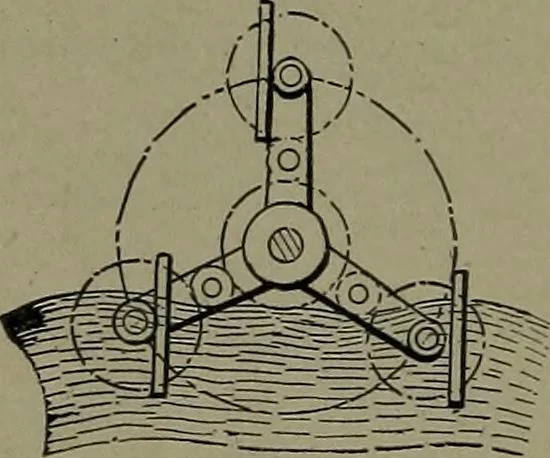

An illustration from Mechanical movements, powers and devices, 1911, leaf 225 — 818. FEATHERING PADDLE WHEELOR WATER MOTOR.—The paddles arekept in a vertical position by a planetary gear.The central gear is fixed. The pinions andgear on the arms keep the paddles in a ver-tical position in the water.
