Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 267

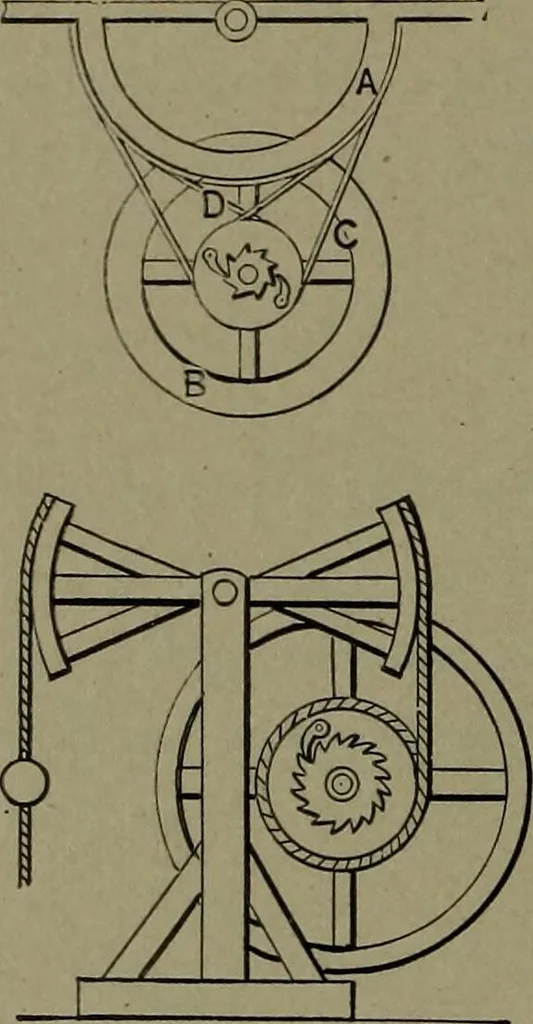

256 MOTION AND DEVICES CONTROLLING MOTION. … 1009. OSCILLATING MOTION into rotarymotion by a straight and crossed band runningon two ratchet pulleys, the ratchets of which arefast on the shaft. Each oscillation of the sectorlever gives a forward motion to the shaft. loio. CONTINUOUS ROTARY MOTION by stop ratchet and oscillating beam.…
Mechanical movements
