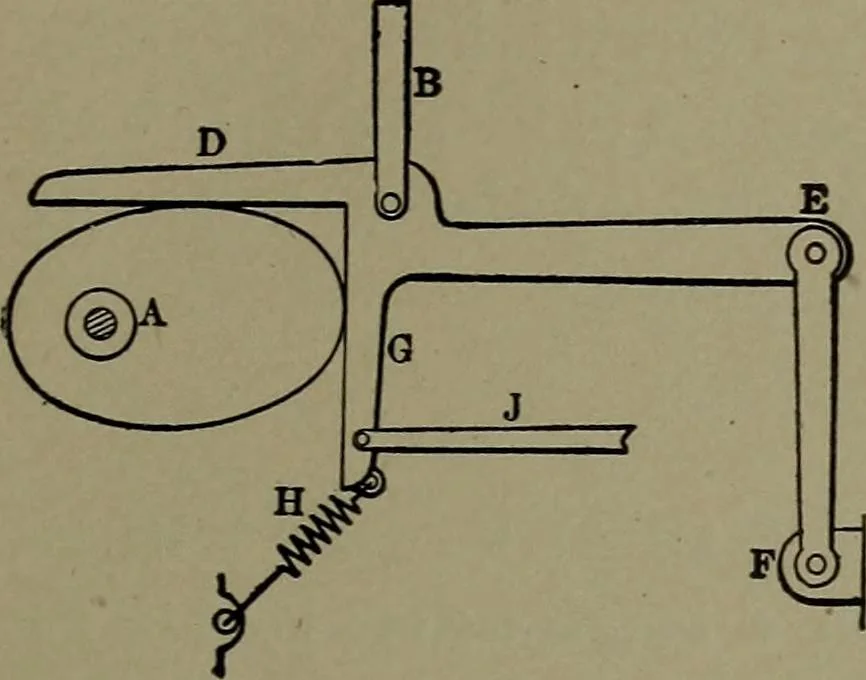

1105. DOUBLE-CAM MOTION, from a sliding follower. The arm Eof the follower, slides freely in thebox, clamped to the vertical shaft,giving two equal motions at rightangles. MOTION AND DEVICES CONTROLLING MOTION. 273 … 1106. PIVOTED FOLLOWER.— The square-armed follower, pivoted atE and F, is kept in contact with thecam by the spring H, and so producedissimilar motions in the connectingrods B, J.
