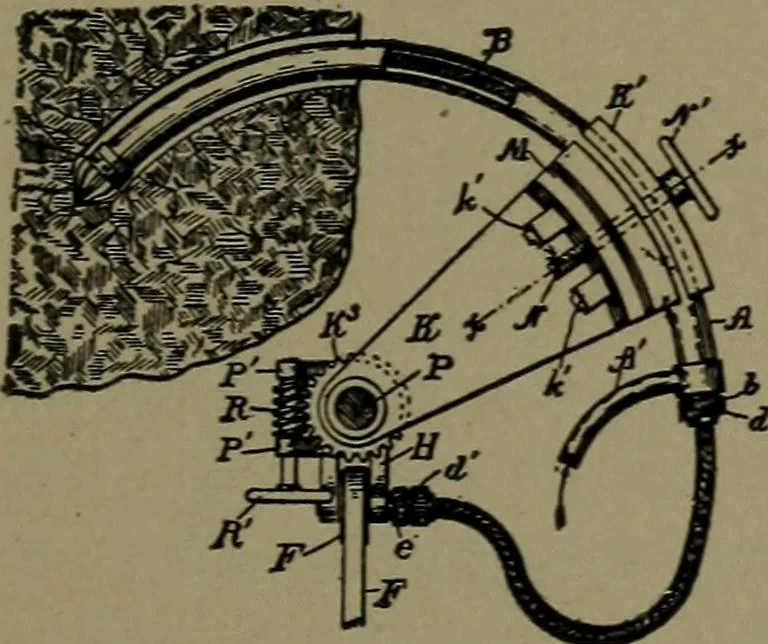

An illustration from Mechanical movements, powers and devices, 1911, leaf 310 — 1204. LINK CHAIN CUTTER, used incoal-cutting machines. … 1205. DRILL FOR CURVEDHOLES, used in coal mining. Thedrill is on the end of a curved tube, andis driven by a flexible shaft. The tubeis fed fonvard by a pivoted arm andworm gear.
