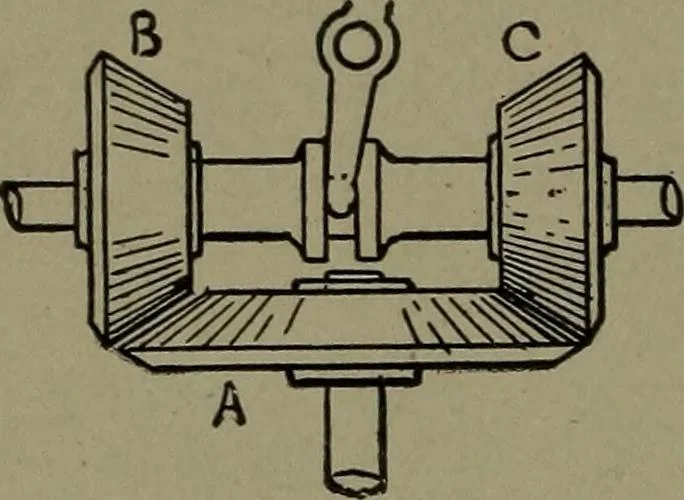

38 TRANSMISSION OF POWER. … 105. FRICTION GEAR, traversingmotion. A, the driver. B and C are faston the Xclutch sleeve which is free to slideon a feather on the driven shaft. The leverbrings B or C in contact with the drivingcone A for reversing.
Mechanical movements
