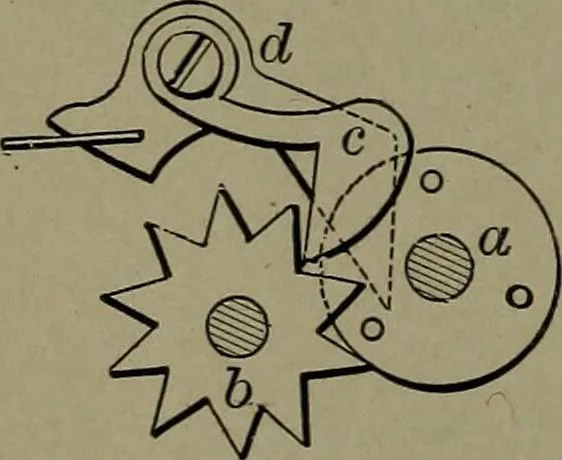

170. INTERMITTENT ROTARY MO-TION, for counters and meters.«, driving pin plate.b^ star wheel counter.c^ pawl.d^ spring latch. The latch d is on the back of the pin plate and holds the starteeth, after rotation, by a light spring. <r is a pawl that locks theteeth; pawl is lifted by pins in pin…
