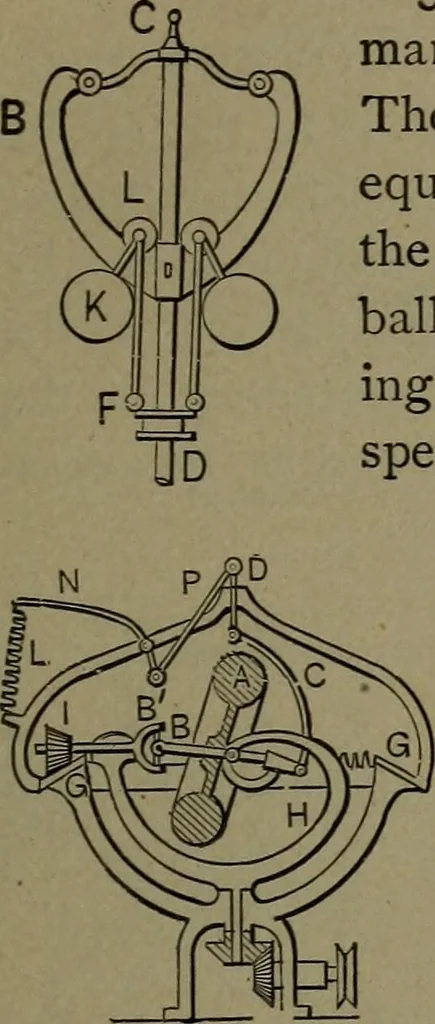

301. SPRING BALANCED CENTRIF-UGAL GOVERNOR, Proell patent—Theballs are attached to the inverted arms b^ b, andraise the collar sleeve by their outward throw.The movement is restrained by the vertical leafsprings and links. The lift is controlled by thecurved links hung from the cross bar dX/, STEAM… … 302. PARABOLIC GOVERNOR.—One of the many curious devices for governing steam engines.The parabolic form of the guide arms is intended toequalize the motion of the grooved slide by modifyingthe effect of centrifugal force in the position of theballs. Also called an isochronous governor, produc-ing…
