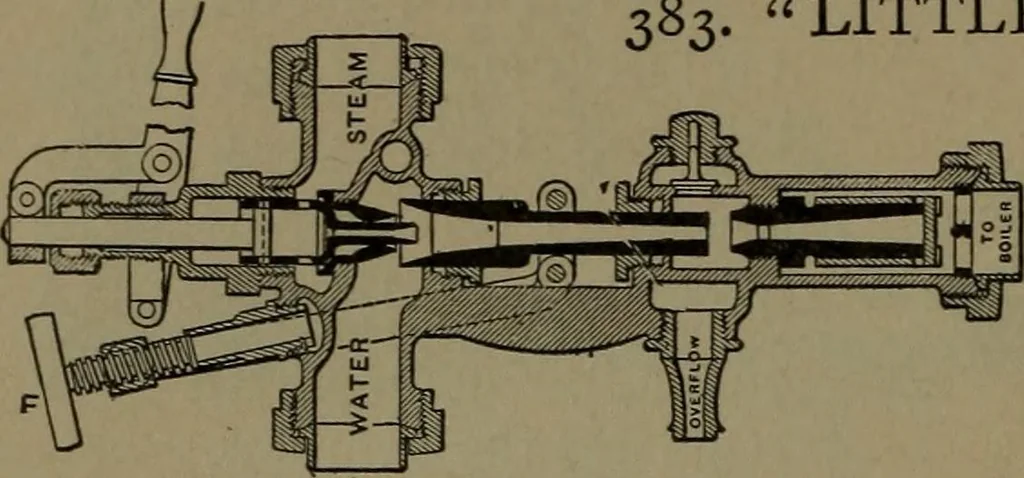

382. SELLERS RESTARTINGINJECTOR.—In this model all the tubesare fixed. Two concentric check valves,C, D, guided by the combining tube, areoperated by the pressure in the combiningtube at the moment that the water reachesit, closing the overflow. ILER io6 STEAM APPLIANCES. … 383. LITTLE GIANT LOCOMOTIVEINJECTOR. —In thismodel the lift is started whenthe separate steam valve isopened. The forcing or com-bining tube is movable for reg-ulation by a screw and yoke, F. A movement of the handle opens the injection nozzle, and closes the lift nozzle ports. METROPOLITAN…
