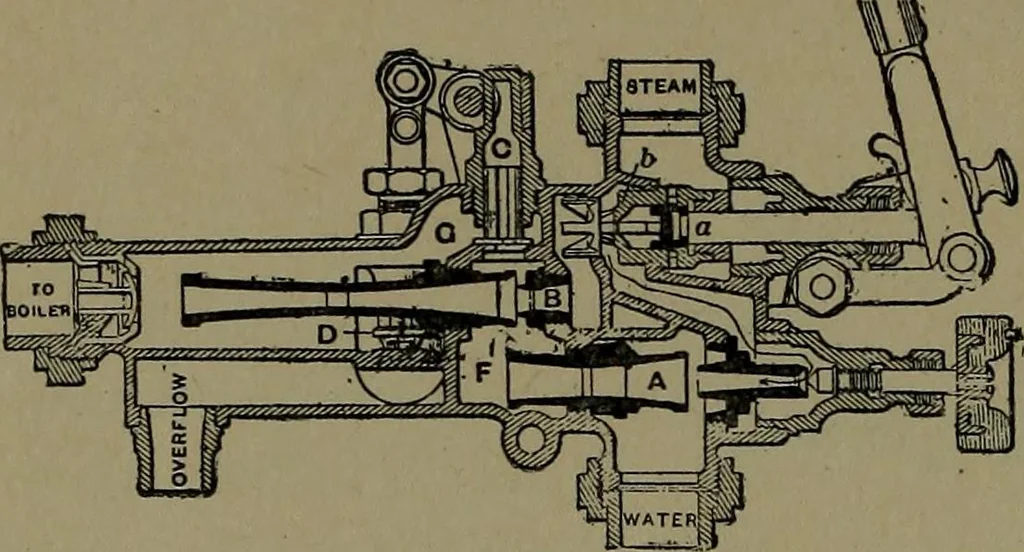

390. BALL-VALVE INJECTOR,in action. J, J, ball valves.P, steam inlet.W, inverted nozzle.Q, suction inlet. B, overflow. C, side outlet to boiler.S, cap. automatic io8 STEAM APPLIANCES. … 391. HANCOCK LOCO-MOTIVE INSPIRATOR, a double-tube injector. A, the lifting nozzle and tube.Bjthe forcingnozzle and tube. C, the lift overflow. D, the force overflow. Two movements of the handle are required for starting; the firstopens the starting valve a and overflow D, with valve H open.…
