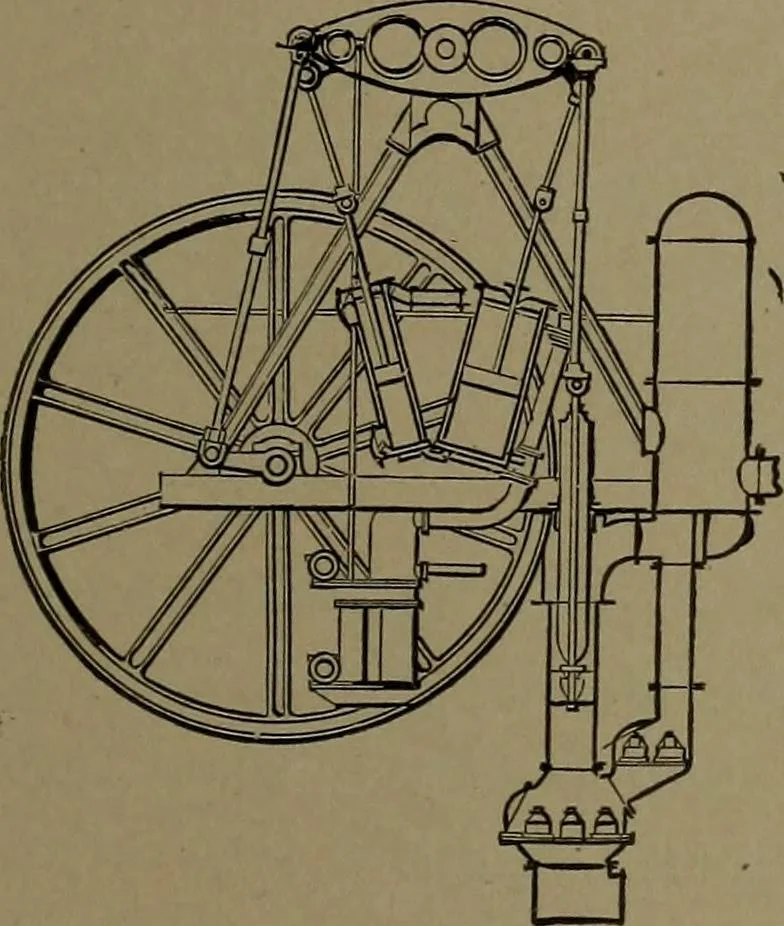

503. POWER OF WATER.—Appara-tus for measuring the force of a water jetwhen turned to a right angle by a benttrough. «, A spring scale. The verticalforce is weighed on the platform scale,■ the horizontal force by the spring scale. … 504. COMPOUND BEAM PUMP-f^ ING ENGINE for water works. The^ high- and low-pressure cylinders are in-clined, to make room for direct connec-tion of the pump and crank rods.
