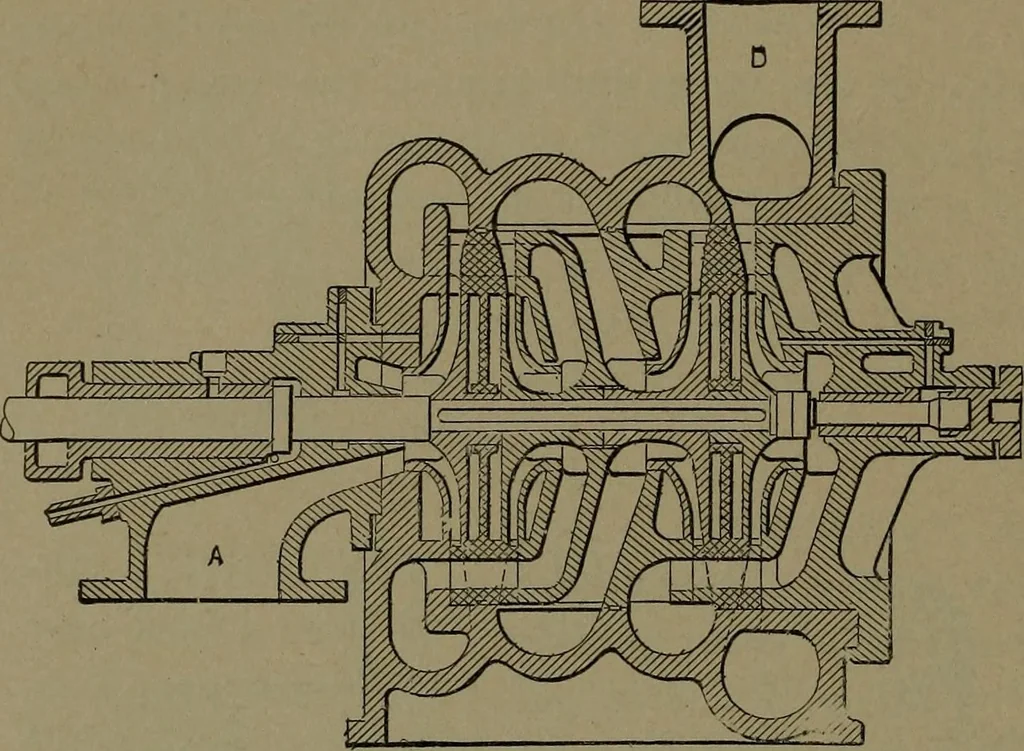

4 HYDRAULIC POWER AND DEVICES. 6iid. FOUR STAGE CENTRIFUGAL PUMP.—The fourvolute wheels are fixed to the shaft. The water enters to the wheel A, is^ thrown out and returnsthrough theopening in thestation-ary partitionto the centerof the nextwheel, and soon to the dis-charge cham-ber D at theright.…
