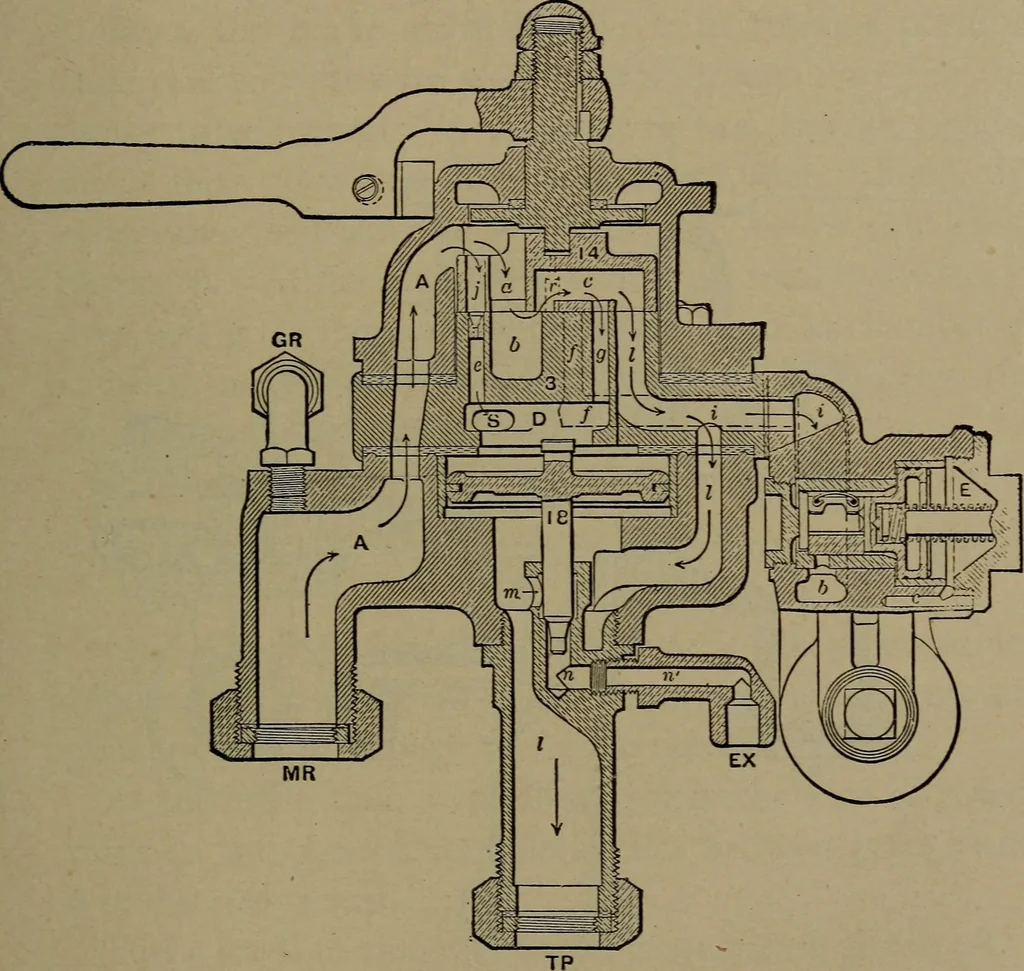

on 18, holding it to itsseat. Port r in the rotary valve is now in register with thedirect exhaust passage; main reservoir pressure thus flow-ing to the atmosphere makes a warning sound to notifythe engineer that the brake valve is in full release position. THE G-6 BRAKE VALVE 179 If the brake… … Fig. 43.—Release Position G-6 Automatic Brake Valve* the brake valve handle must be moved to runningposition. Cavity d above the equalizing piston is always in directcommunication with the equalizing reservoir; therefore 180 THE G-6 AUTOMATIC BRAKE VALVE ; pressure and volume of air in cavity d are…
