Woolen and worsted finishing; a practical manual of instruction in the methods and machinery used in finishing woolen and worsted goods in general, and the processes involved in the special treatment of all types of standard fabrics (1909)
American School of Correspondence, Timmermann, John F · Chicago, American School of Correspondence · leaf 137

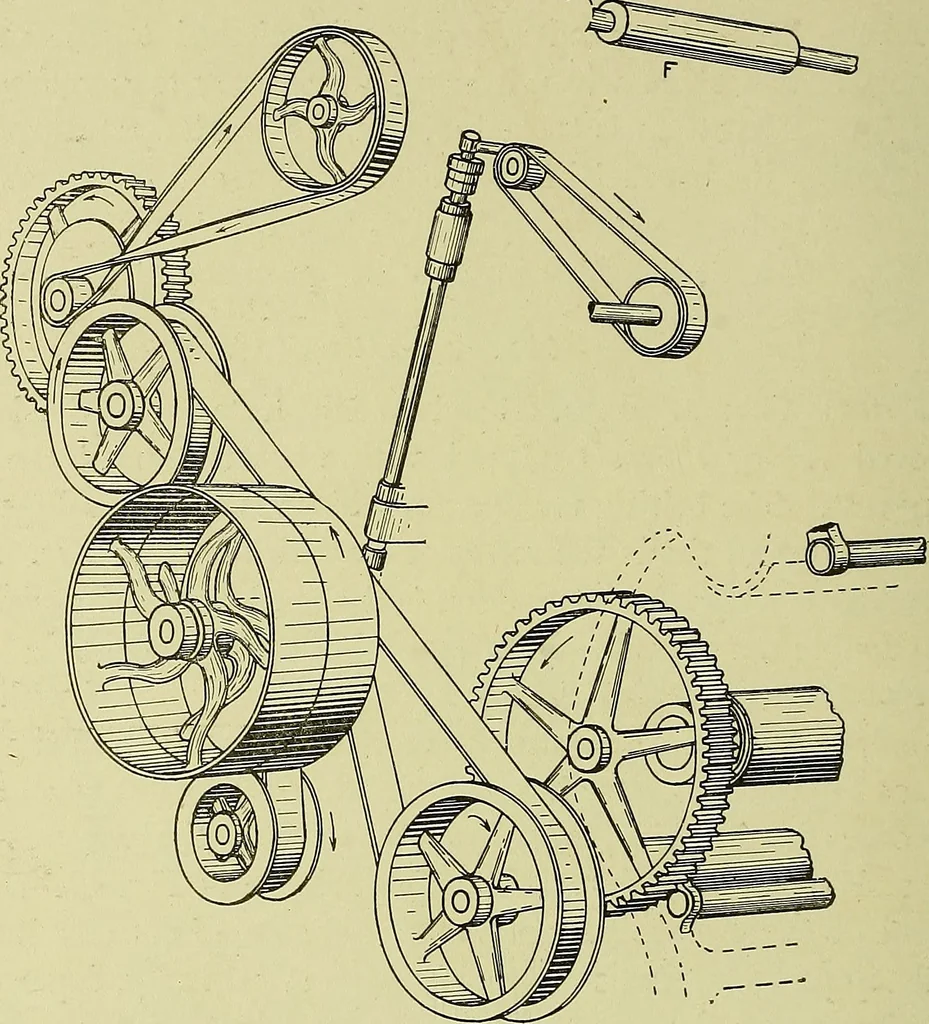

sult, as it is possible to run the seam closer to theblades and thus save a little from the head ends which must after-wards be cut off. A few inches saved on each piece will make ayearly total well worth considering. 121 114 WOOLEN AND WOKSTED FINISHING Description. The dotted line shows the path… … Fig. 38. Left Side Belting. From there it passes under the idle rolls B and C and over thedraft roll D. The draft roll D draws the cloth from the scray Ubeneath the machine, pulling on the back of the goods so that thenap on the face is not displaced: from there it passes over thebrush rest F,…
