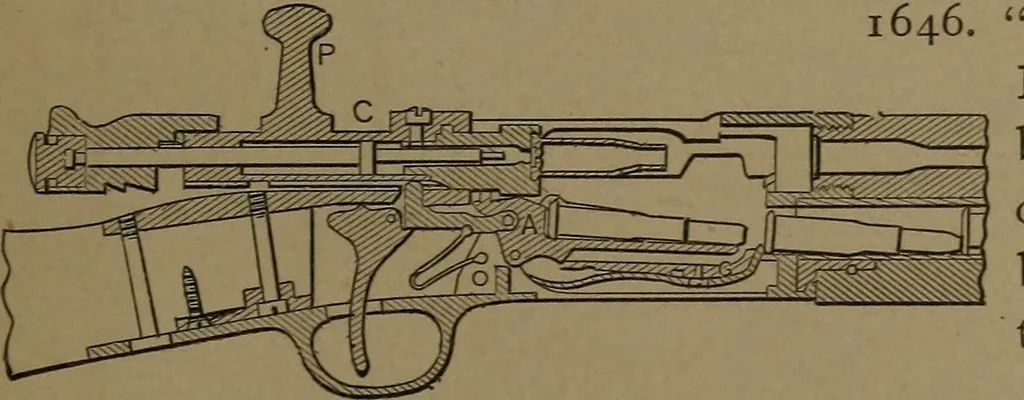

into the barrel. HOTCHKISS MAGAZINE GUN.—The reserve cartridges^^ are carried in the gun stock^^^^ and f onvarded by a light spring.The breech bolt draws back bythe handle, when the cartridgeis raised and pushed forwardCentre pin spring hammer. LEBEL RIFLE.— Magazine under thebarrel in the…
