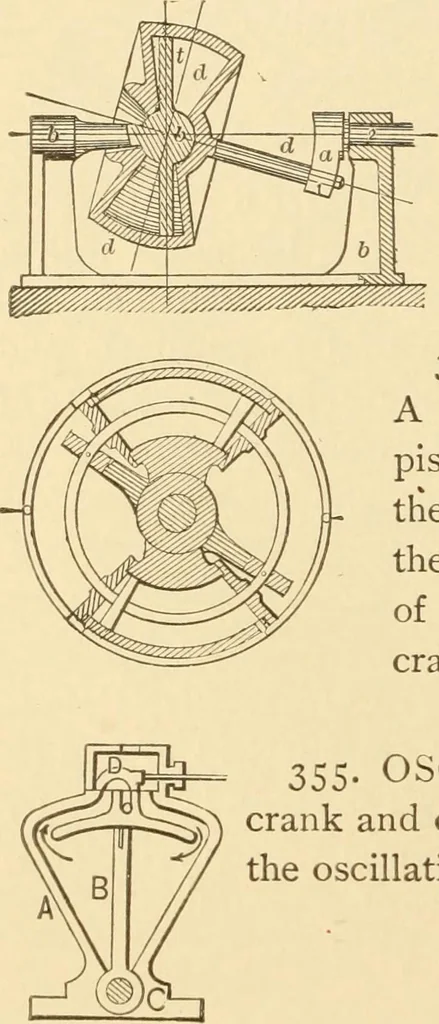

xed shaft. Thecylinder swings on a central sphericalbearing, carrying an arm pivoted in acrank. 354. LINK VIBRATORY ENGINE.—A pair of curved cylinders with an annularpiston rod to which is attached the arms fromthe central shaft. The reciprocal motion ofthe piston rocks the central shaft, the… … STEAM POWER. 97
