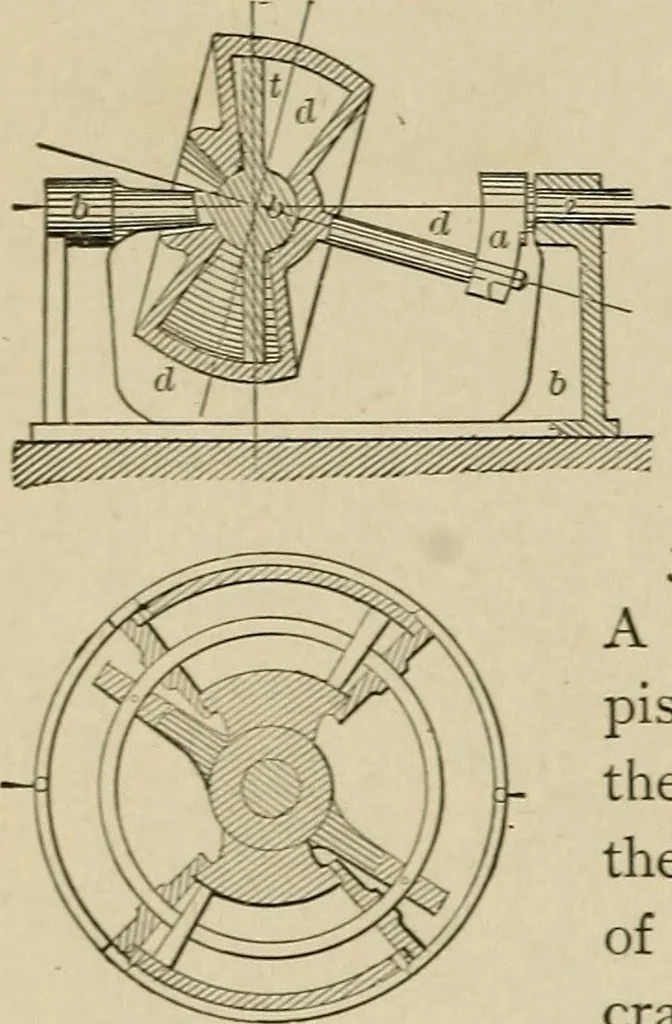

ing an arm pivoted in a crank. 354. - LINK VIBRATORV ENGINE.—A pair of curved cylinders with an annularpiston rod to which is attached the arms fromthe central shaft. The reciprocal motion ofthe piston rocks the central shaft, the motionof which is made continuous by a link andcrank, not shown.
