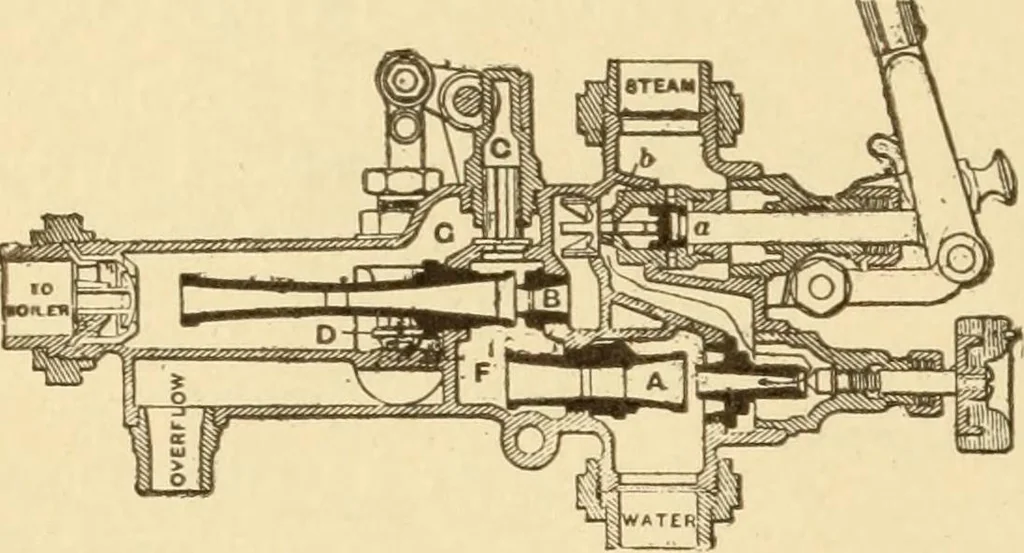

g nozzle first and, bya further movement of thehandle, opens the force noz-zle B. The overflow is self-adjusting for both nozzles. 389. HANCOCK INSPI-RATOR.—A double-tube injector.The tube A lifts the water andstarts the circulation through theoverflow, when the steam nozzleB is opened and valves C… … 391. HANCOCK LOCO-MOTIVE INSPIRATOR, adouble-tube injector. A, the lifting nozzle and tube. Bjthe forcing nozzle andtube. C, the lift overflow. D, the force overflow. Two movements of the handle are required for starting; the firstopens the starting valve a and overflow D, wdth valve H open.…
