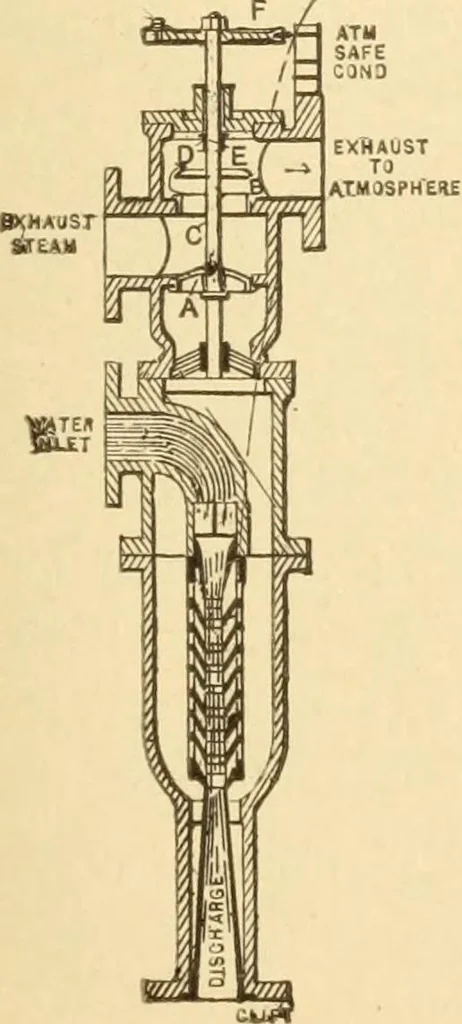

396. INDEPENDENT JETCONDENSER PUMP. A, exhaust inlet from engine. B, water inlet. C, water nozzle. D, spray valve regulated byscrew spindle and wheel E. F, spray chamber. J, water discharge from pump. … 397. EJECTOR CONDENSER, with auto-matic three-way valve. By the operation of twovalve discs on a single stem the exhaust steam ispassed to the atmosphere, or is condensed b}- themultiple nozzle water jet. Korting model. no STEAM APPLIANCES.
