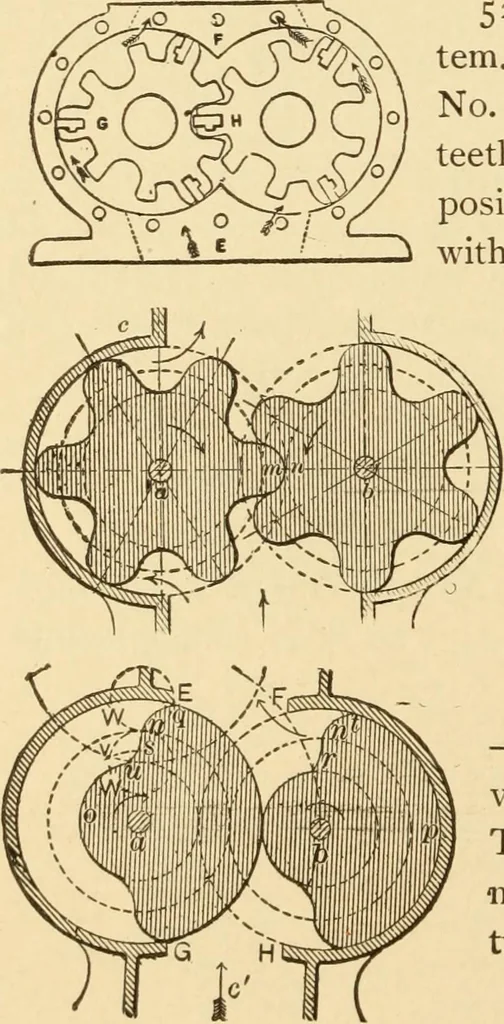

gteeth meshing into the recesses of the op-posite gear piston. Used in combinationwith No. 342 in the Silsby fire engine. 530. PAPPENHEIM ROTARYPUMP. — One of the earliest rotarydevices for raising water. Two deepcog-wheels with their teeth meshed androtating in a close-fitted shell. 531. REPSOLD… … HYDRAULIC POWER AND DEVICES. 45 532-533. TRI-AXIAIROTARY PUMP.—Alate French invention. Theupper cyhnder receives thepower and rotates the lowerchambered cylindersthrough three spur gears.The wings of the upper orpower cylinder are set fast and are the only rubbing surfaces. Thecylindrical surfaces…
