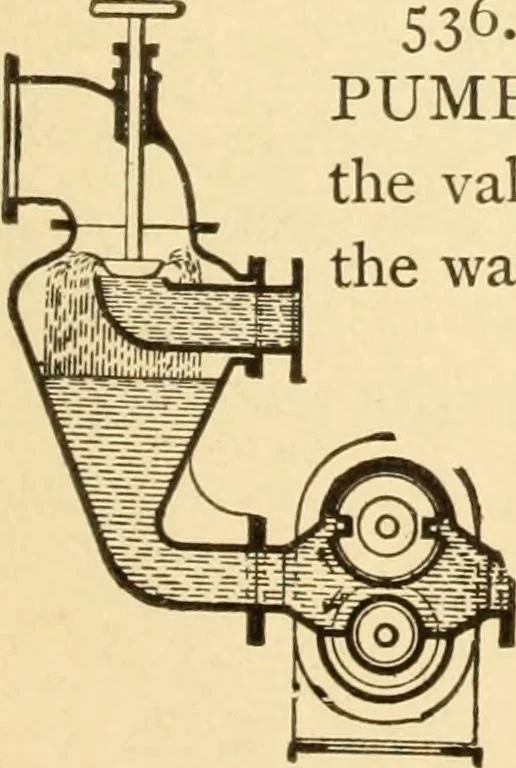

535. GARY ROTARY PUMP.—A rotat-ing drum concentric with the outer fixed cylinderand a fixed heart-shaped^cam groove in which thesliding wings are guided. A stop, E, closes thesuction and force side of the chamber. The formof the outer cylinder wall is spiral. … 536. VACUUM JET CONDENSER AND ROTARYPUMP.—The jet in the vacuum chamber is regulated bythe valve. The rotarj^ pump, being entirely immersed inthe water below, is water-packed. 146 HYDRAVLIC POWER AND DEVICES.
