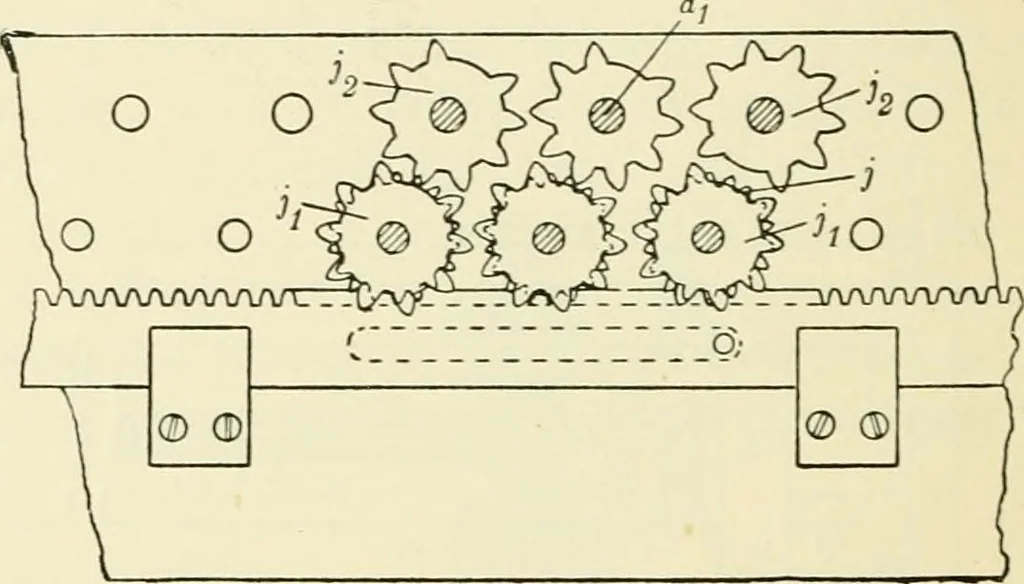

Fig. 52.—[\ actual size.) Con-struction of the crank. … Fig. 53.—(f actual size.) Effacer. sion in the top of the machine. This then takes up any further strain on thecrank, and possible injurious effects are avoided. A reverse turn of thecrank, which the internal construction of the machine will not allow, is pre-vented by a pin which is pressed by a…
