Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 249

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 249

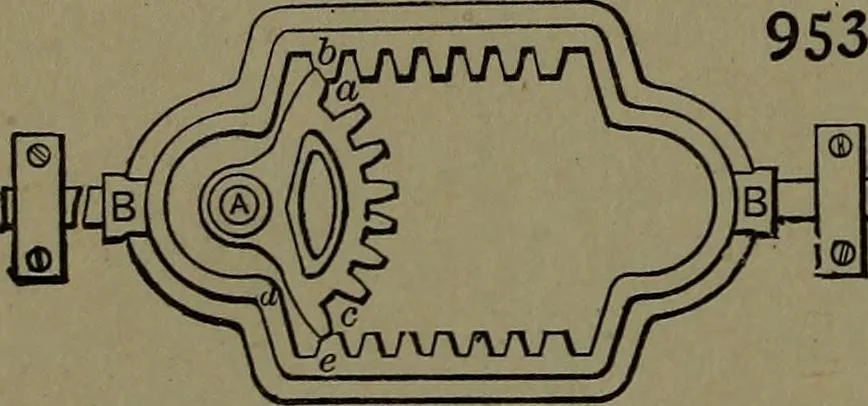

ALTERNATING RECTILINEARMOTION by the revolution of a sec-1 tor by which one revolution producesboth motions. The curved back ofthe sector just touches the extendedtooth of the rack frame at J, while the teeth at e and ^ are partly inmesh with the enlarged sector end teeth, thus preventing…
