Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 258

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 258

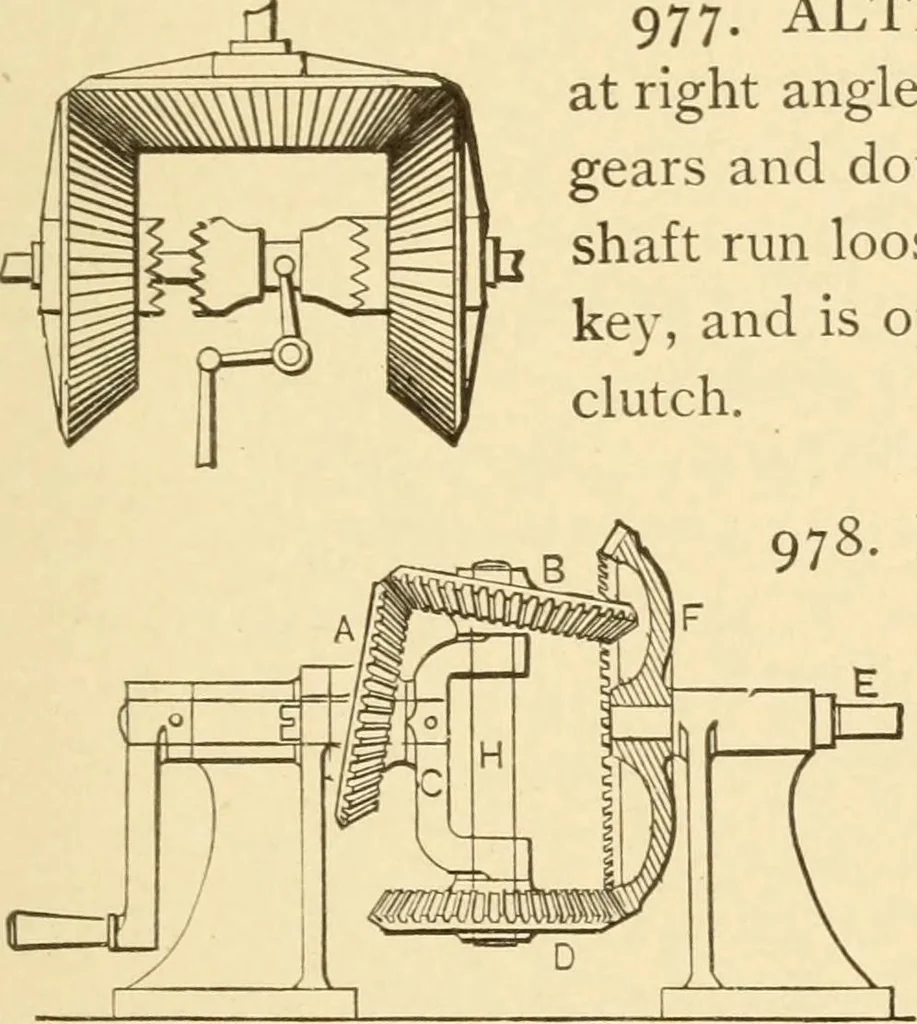

976. CONTINUOUS SHAFT MO-TION from an alternating driving shaftThe ratchets fixed to the bevel gears onthe shaft a are operated by pawls fixedto the shaft, the rocking of which re-volves the bevel gear and shaft B in onedirection. … 977. ALTERNATING MOTION of a shaftat right angles to a driving shaft by three bevelgears and double clutch. Bevel gears on clutchshaft run loose. Clutch slides on a feather orkey, and is operated by a Y-lever and groove inclutch. ECCENTRIC WHEEL TRAIN. —The elliptical bevel gear A isfixed to the…
