Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 288

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 288

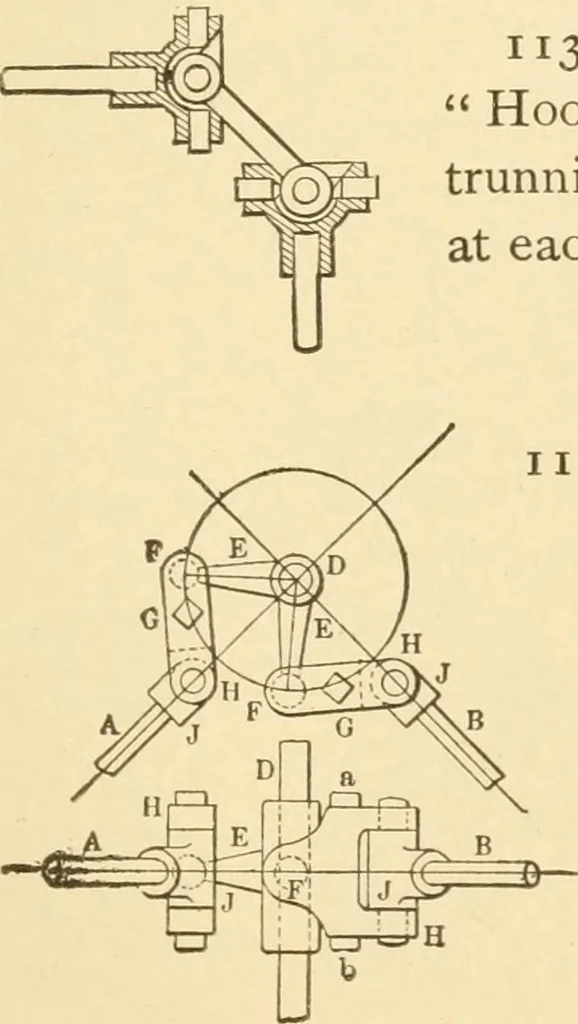

1132. UNIVERSAL JOINT, with a singlecross link. Good for angles of 45** and under. 1133. DOUBLE LINK UNIVERSALJOINT, good for larger angles than above.The connecting link may be made short andguarded, with a sleeve to prevent kinking. … 1134. UNIVERSAL ANGLE COUPLING, Hookes principle. Each shell carries a doubletrunnion ring, the connecting link being pivotedat each end to the rings. 135. ALMOND ANGULAR SHAFTCOUPLING.—The yoke links G, G arepivoted to the sockets on the ends of theshaft, and to the right-angled arms on thesleeve…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
