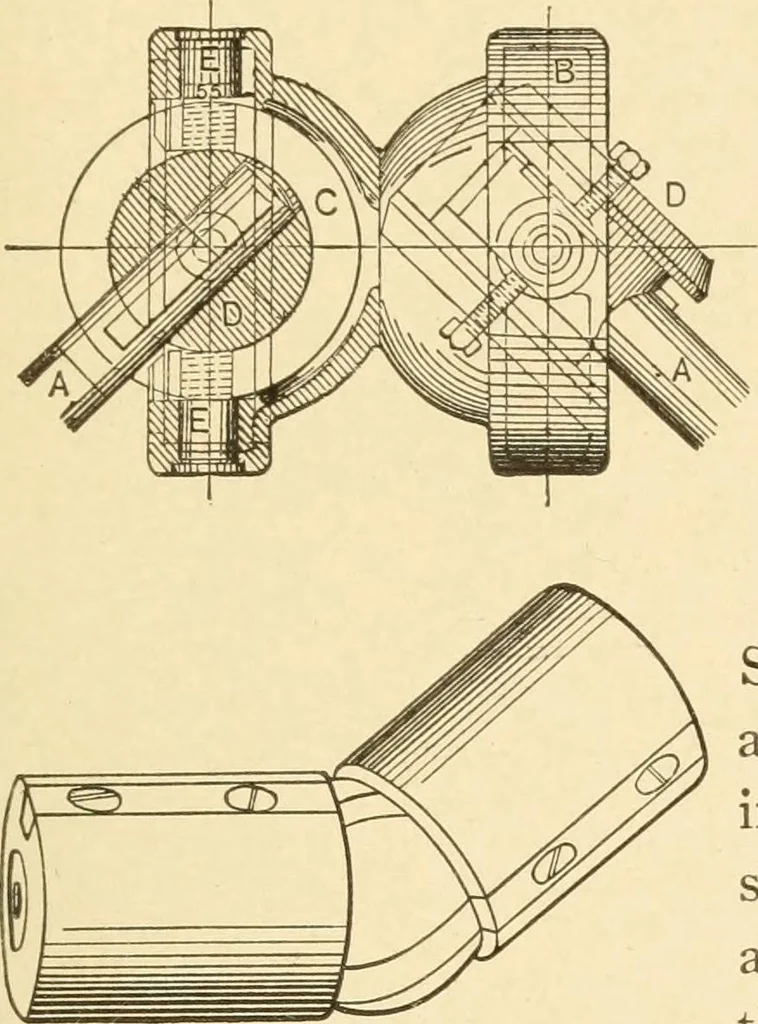

1294. UNIVERSALshafting. Ring gimbal. JOINT, for 1295. HOOKES UNIVERSAL JOINT.—One shaft end is keyed into a ball with trun-nions, which turn in a ring with trunnions at1 right angles with the ball trunnions. The ringtrunnions turn in the outer shell to which theother shaft is keyed. MILL AND… … 1296. GOUBETS UNIVERSALSHAFT COUPLING.—A, A, shafts; C, a trunnion ring recessed in a ball, D. Each shell is alike, and in itselfa universal joint for 45°. Both to-gether equal to 90°. 1297. BALL SOCKET UNIVER-SAL JOINT.—A ball with groovesaround it at right angles and bearingin the spherically…
