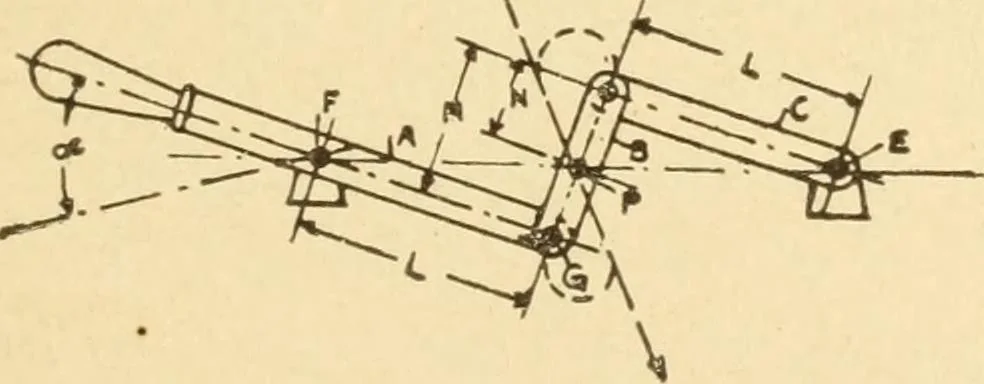

nected at E to link K.Lever / is pivoted at G and con-nected to link K at F. The pointP, when B is twice A and C is half of A, will move in a straightline of 28 degrees. 1658. STRAIGHT LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers A and C connectedby link 5.gives 26 degrees ofstraight line motion… … 400 STRAIGHT LINE MOVEMENTS.
