Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 71

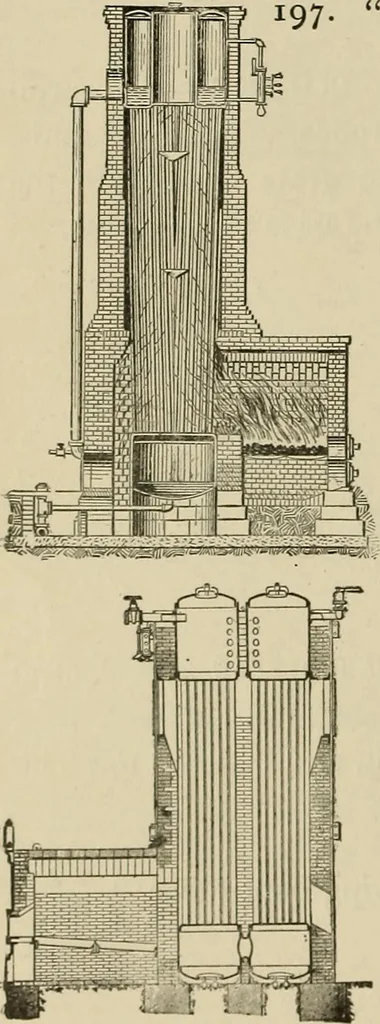

MOVES WATER TUBE BOILER.—The inclined tubes are in threegroups, set in three steam drumsabove and three water-heads be-low. Partitions divide the groupsof tubes to deflect the flame overthe whole surface. 196. WHEELER VERTICAL TUBE BOILER.—Two sections of straight vertical tubes, with drum-headstop… … CAHALL VERTICAL WATER TUBEBOILER.—A water drum at the bottomforms the lower head for the tubes. An an-nular drum at the top forms the upper head,through which the smoke passes. The fur-nace and combustion chamber are outside, asis also the circulating pipe, as shown in thecut. 198. VERTICAL WATER…
Mechanical movements
