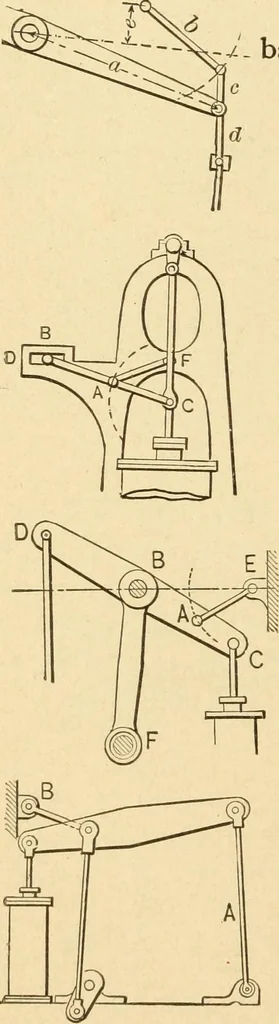

279. PARALLEL MOTION, with two pairsof connecting bars. a and I? are of equal length.^ and d are of equal length.^, cross-head. … ^ 280. PARALLEL MOTION, with the radius J.- bar pivoted above the centre line of the beam.^ and ^ are of equal length.e=z c ox d,b = half a. 281. PARALLEL MOTION for a direct-acting engine. The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and…
