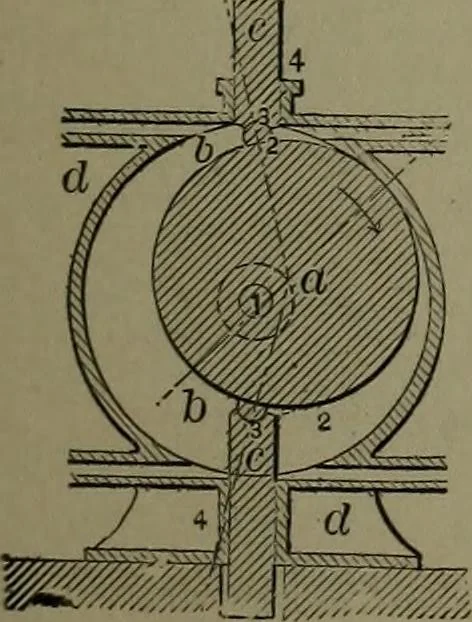

330. ROTARY ENGINE.—B, shaft; C, eccen-tric rotating piston ; D, follower slide. The eccen-tric cylindrical piston operates the slide by itsrevolution. … 331. NAPIER ROTARY ENGINE.—Aneccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting bars-There are two pair of ports. 92 STEAM POWER.
