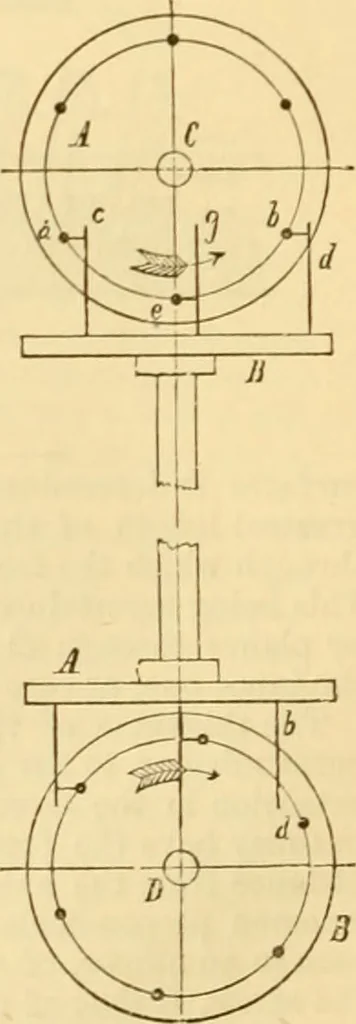

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 41 — y constant.It will be noted that, the arrows indicating the directions of the rotations, the length of the pin E must be such that the next pin F of the other wheel B shall not catch upon its end in going into gear. And it will also be seen that, althoughat the instant of coming into contact with… … GEARING. 33 The maximum length of one pin having been determined, it is of course the same for all; and itis next to be observed, that if the number be increased, this length must be diminished; also, that inevery case there will be a limit beyond which the number cannot be increased without also…
