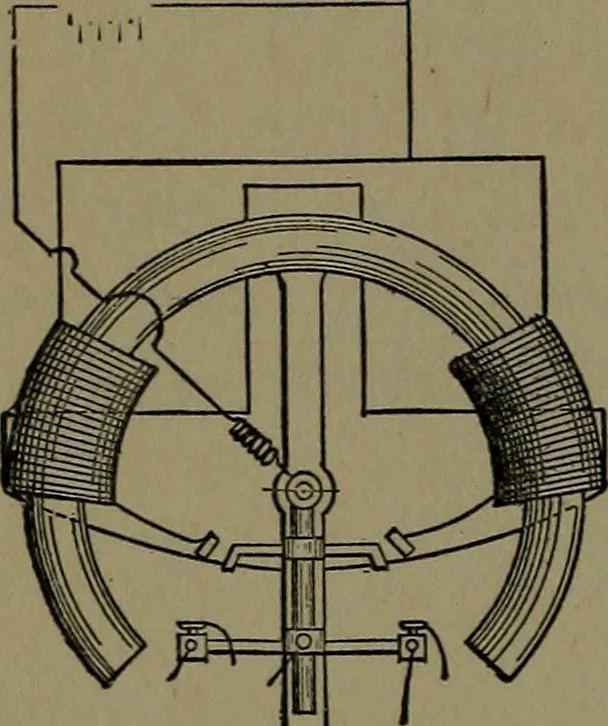

759^. PNEUMATIC EMER-GENCY BRAKE.—Instantaneous ac-tion from air brake pressure on thepiston A, which is connected by ajointed rod to the levers E, E, throwsthe brake H in contact with the railwith great force. 204 ELECTRIC POWER AND CONSTRUCTION. … 759/. SOLENOID ELECTRIC FAN.—A circular magnet attached to a pivoted armand fan blade, oscillates within two electriccoils by the alternate make and break of thecircuit from the battery by the contact fin-gers and studs. Requires no switch; sim-ply stopping or starting the fan blade putsit out and…
