Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 126

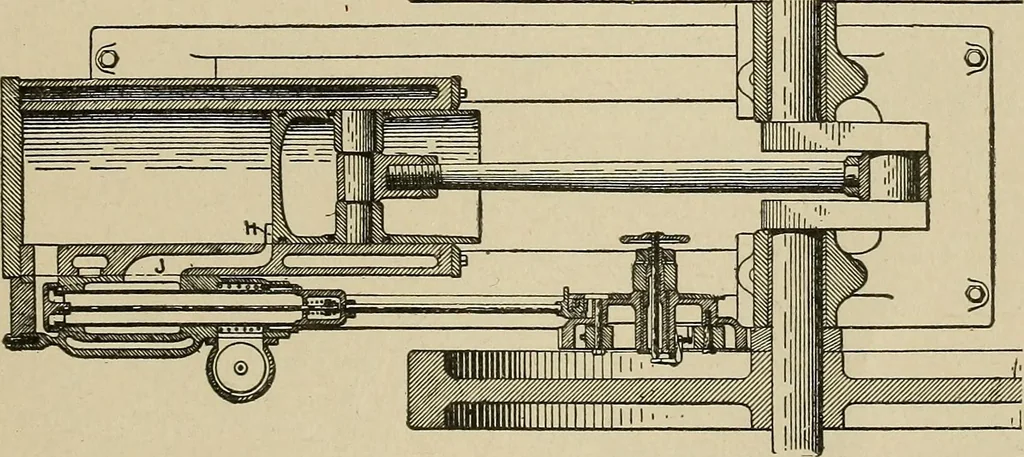

422. GASOLINE ENGINE, Olds model. Plan showinglocation of valve chest and valve gear, operated from an eccentric withan alternating sector gear for an impulse at every other revolution. … 423. SECTIONAL PLAN OF A GASOLINE ENGINE.— Four-cycle type, with exhaust port opened by the piston at the endof the stroke, and continued exhaust through an annular valve aroundthe inlet valve. The charge is heated and vaporized in the valvechamber by the exhaust. Olin model. ii8 MOTIVE POWER.
Mechanical movements
