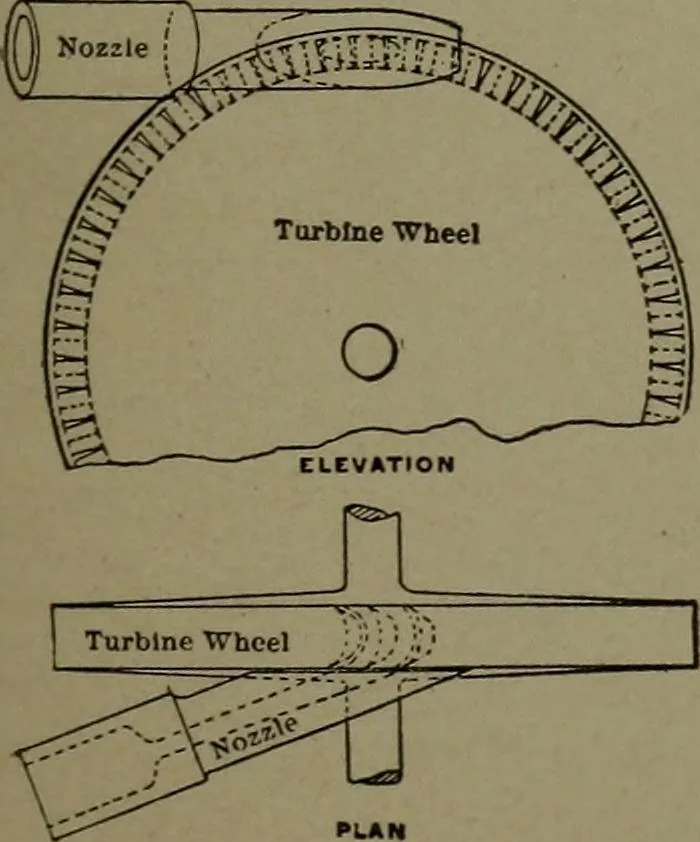

369. DE LAVAL STEAM TURBINE.— A jet or jets of steam impinge at a smallangle upon the concave buckets at the per-iphery of a disc wheel, pass through thecavities between the buckets and exhaust atthe other side. The buckets are lunette.The nozzle has an expanding orifice. 370. Plan showing nozzle…
