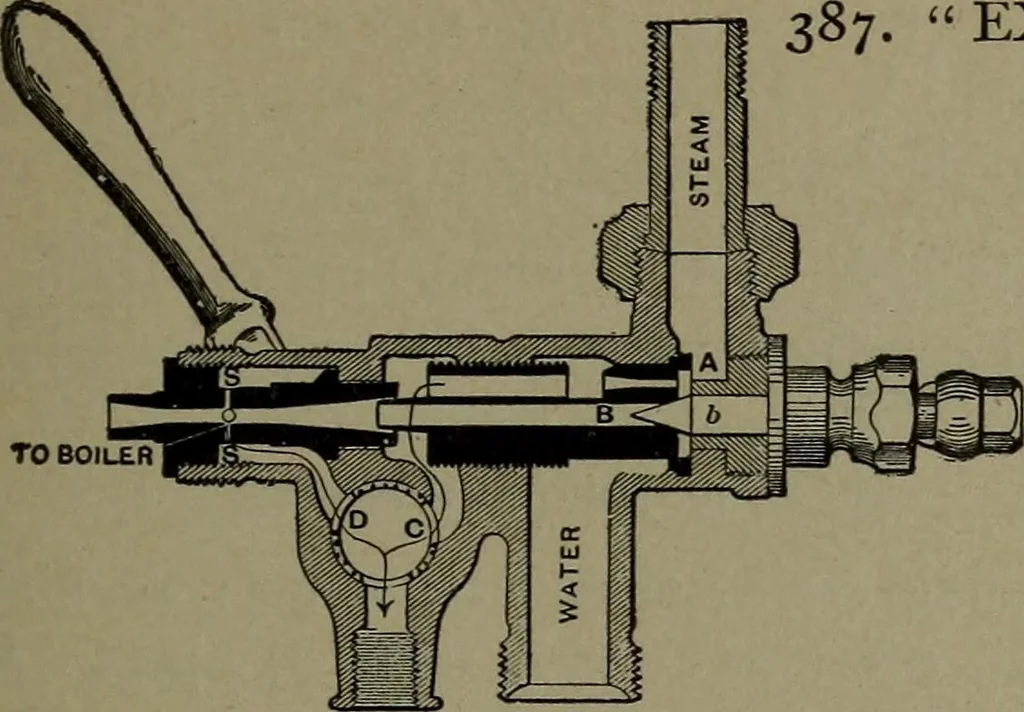

386. LEADER INJECTOR.—^A double-tube injector. Aseparate valve gives steamto the lifting nozzle A, withthe overflow cock open. Thefirst movement of the handleopens the force valve h ; afurther movement closes theoverflow to both lift and forcetubes. STEAM APPLIANCES. ior … EXCELSIOR INJECTOR.—A separate valve gives steamto the lifting nozzle A, theoverflow cock D C beingopen. The first movementof the handle opens the coni-cal valve b ; 2^ further move-ment closes the overflow cockD C to both the lifting andforce overflow S.
