Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 116

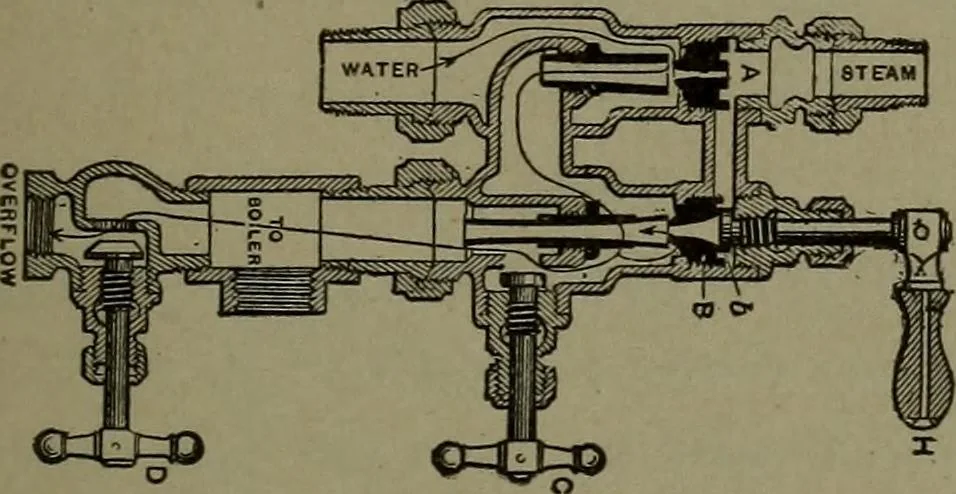

KORTING INJECTOR.—A double-tube automaticmovement by which the dif-ference in area of the valvediscs at A and B allows thebalance lever to open thelifting nozzle first and, bya further movement of thehandle, opens the force noz-zle B. The overflow is self-adjusting for both nozzles.
Mechanical movements
