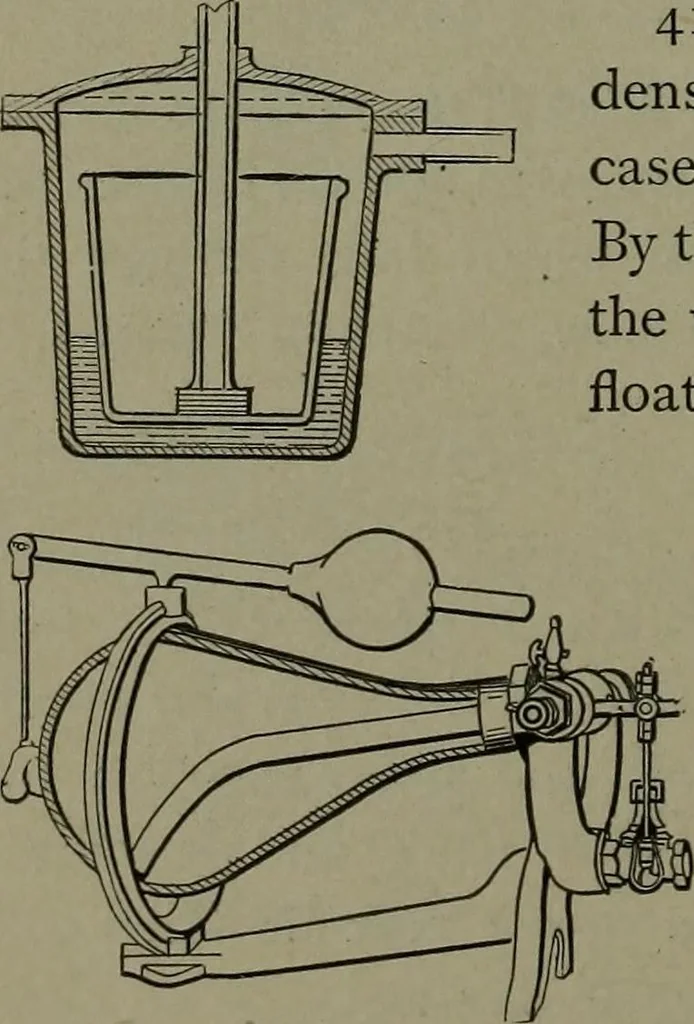

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 121 — ogether. 410. STEAM T R A P.— The water con-densed in a heating system flows into the trapcase and closes the valve by lifting the float.By the overflow into the float, it sinks, openingthe valve, and the water is discharged from thefloat, allowing it to rise and to close the valve. 411. BUNDY… … STEAM APPLIANCES. 115
