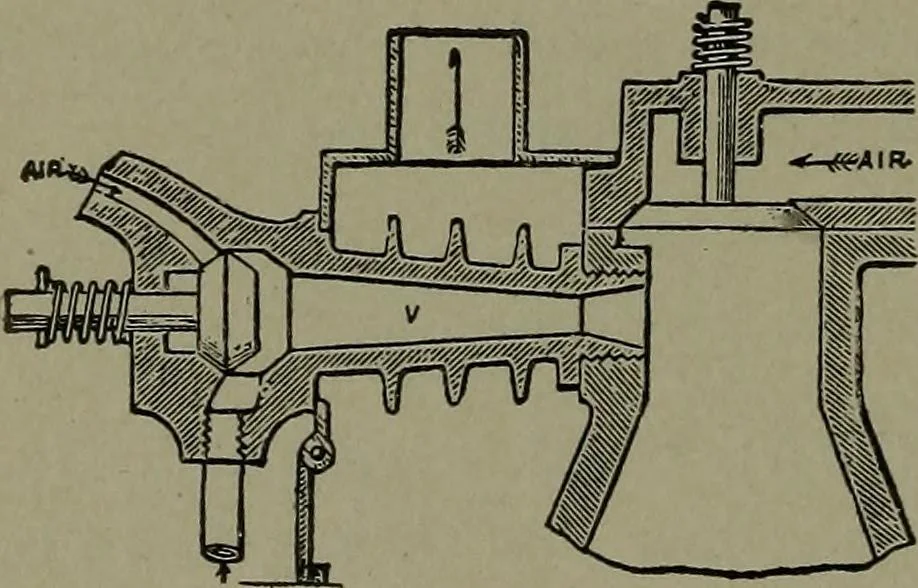

GINE VALVE GEAR.—E, Inlet valve; F, exhaust valve. Valvesare operated by a bent lever, with slidingroller H and double cam C, which bv agroove rides the roller alternately on to thecams. drawn 446. GASOLINE VAPORIZER. — The inlet nozzle, V, is ribbed onthe outside and is enclosed in achamber… … 447. CARBURETTERfor making air gas fromgasoline; non-freezing. A,plan — a zig-zag series ofchambers with spaces be-tween for air circulation tokeep its vaporizing wallsB, a vertical section ; r, <r, <r, open spaces. Canton or otherflannel wrapped over wire gauze frames is pushed into the…
